Mass Airflow Sensor Replacement

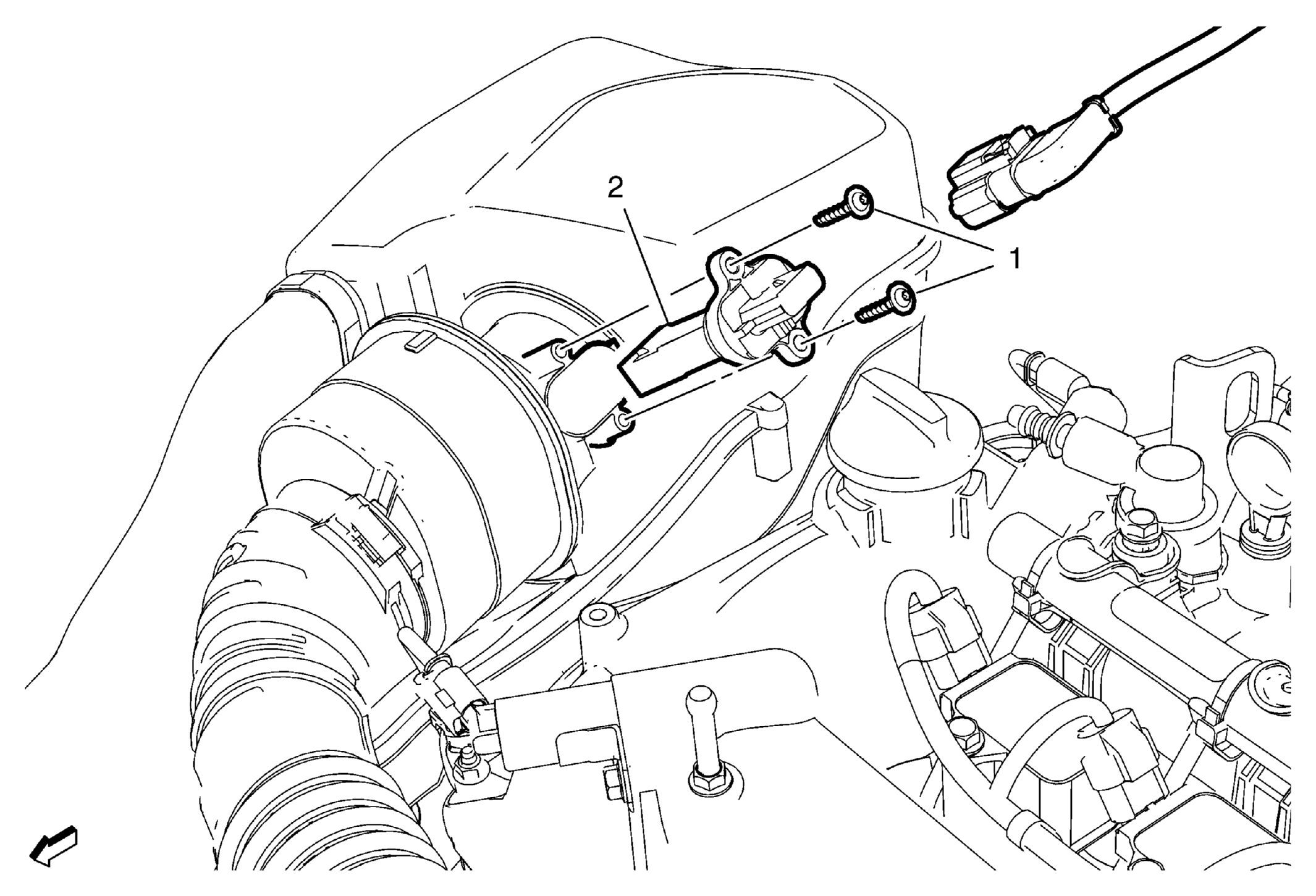

Fig 1: Mass Airflow Sensor
GM3686892Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Battery Negative Cable Disconnection and Connection
1 Mass Airflow Sensor Bolt [2x]
CAUTION: Refer to Fastener Caution .

Tighten
2.5 N.m (22 lb in)
2 Mass Airflow Sensor
Procedure
Disconnect the electrical connector.
