Installation Procedure

  1. Install a NEW throttle body assembly seal. (3)

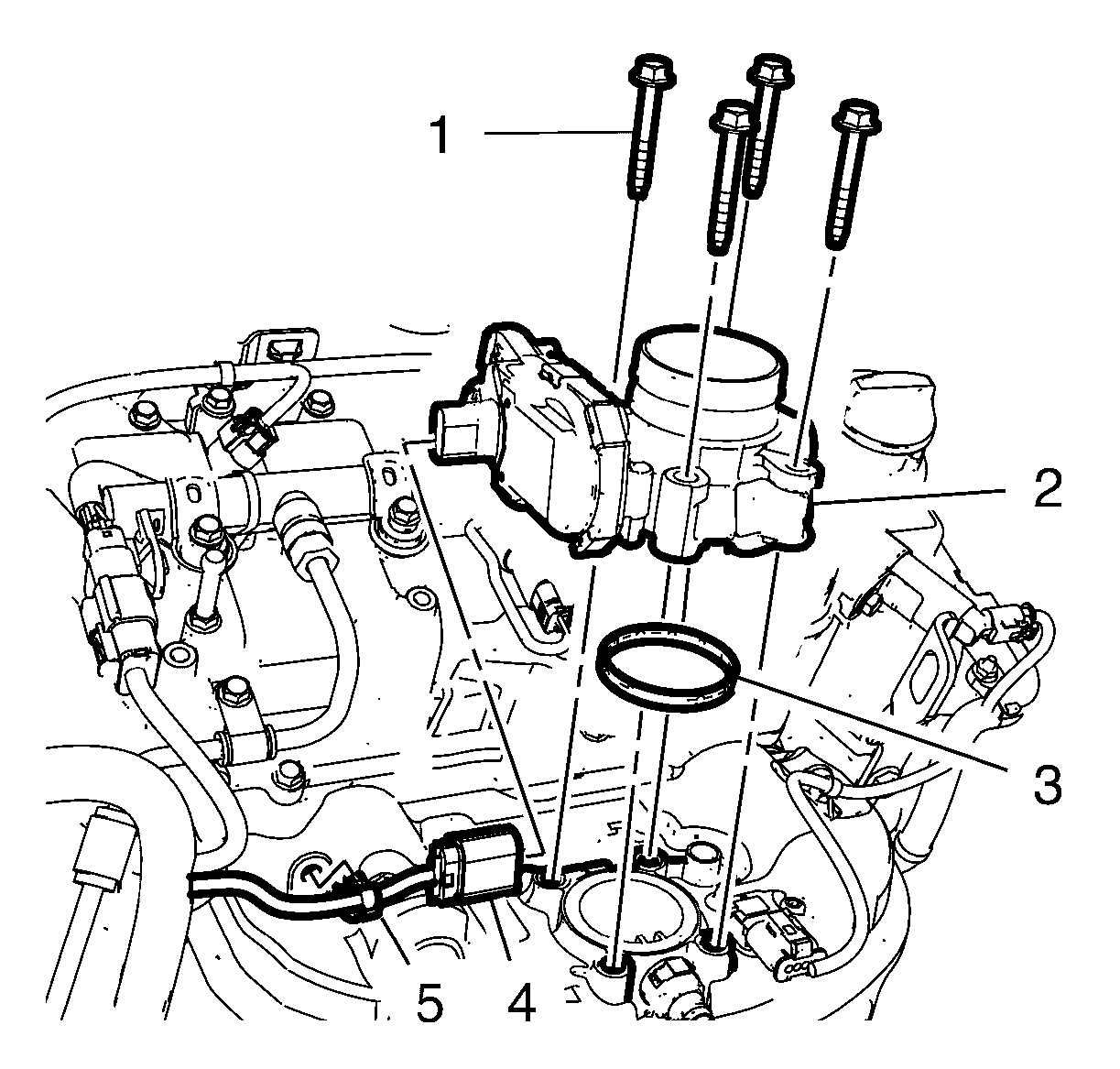

    Fig 1: Throttle Body Assembly Bolts And Seal
    GM3665595Courtesy of GENERAL MOTORS COMPANY
  2. Throttle Body Assembly (2)» Install
  3. Throttle Body Assembly Bolt (1)» Install and tighten 10 N.m (89 lb in) [4x]
    CAUTION: Refer to Fastener Caution .
  4. Electrical Connector (4)» Connect
  5. Wiring Harness (5)» Install
  6. Charge Air Cooler Outlet Air Hose Replacement » Install
  7. Engine Sight Shield Replacement » Install
