Body Control Module Bracket Replacement

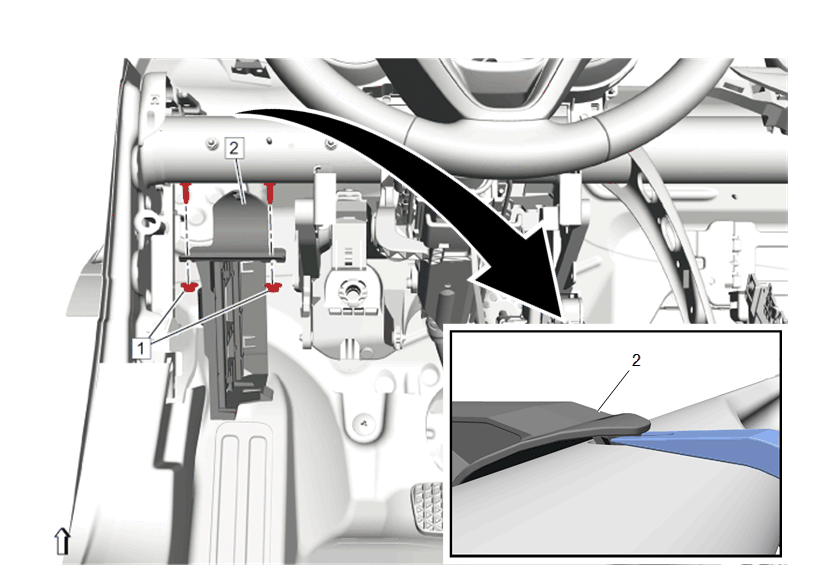

Fig 1: Body Control Module Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Body Control Module Replacement
1	Body Control Module Bracket Nut [2x] CAUTION: Fastener Caution Tighten 5 N.m (44 lb in)
2	Body Control Module Bracket Procedure Unlock the retaining tabs. Use a flat bladed plastic trim tool.

Callout

Component Name

Body Control Module Bracket Nut [2x]

CAUTION: Fastener Caution

Tighten
5 N.m (44 lb in)

Body Control Module Bracket

Procedure
