Ignition Lock Key Transmitter Antenna Replacement - Instrument Panel

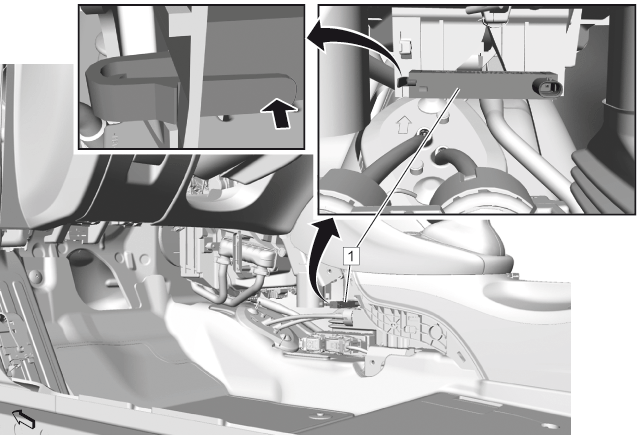

Fig 1: Ignition Lock Key Transmitter Antenna - Instrument Panel
GM4084568Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Floor Air Outlet Replacement
1 Ignition Lock Key Transmitter Antenna

Procedure

  1. Retainer» Loosen
  2. Disconnect the electrical connector.
