Theft Deterrent Module Replacement

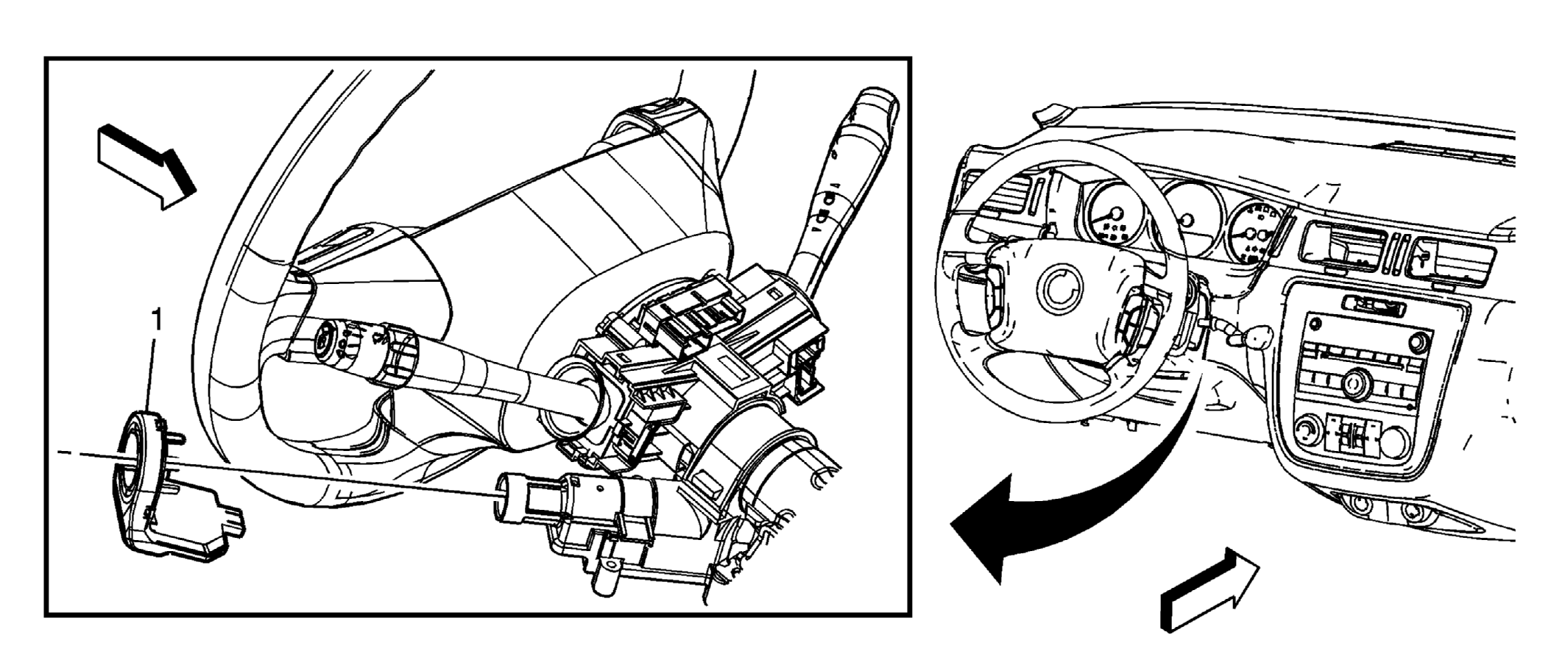

Fig 1: Theft Deterrent Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the ignition lock cylinder. Refer to Ignition Lock Cylinder Replacement .
1	Theft Deterrent Module Procedure Disconnect the electrical connector. Refer to Control Module References for programming and set up procedures.

Callout

Component Name

Preliminary Procedure
Remove the ignition lock cylinder. Refer to Ignition Lock Cylinder Replacement .

Theft Deterrent Module

Procedure
