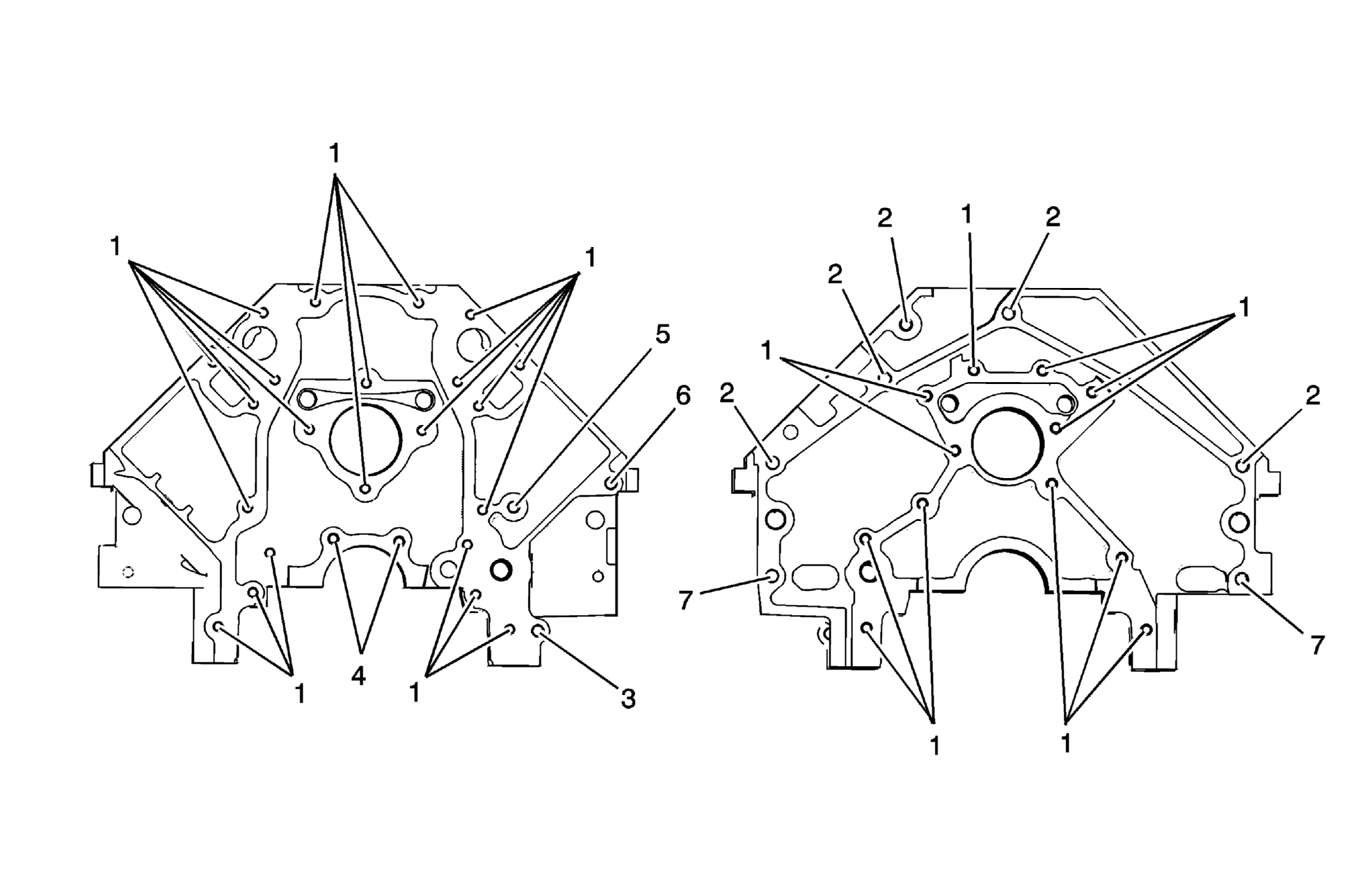

Engine Block- Front/Rear Views
Engine Block- Front/Rear Views
| Hole | Thread Size | Insert | Drill | Counter Bore Tool | Tap | Driver | Drill Depth- Maximum mm (in) | Tap Depth- Maximum mm (in) |
|---|---|---|---|---|---|---|---|---|
| J 42385- | ||||||||
| 1 | M8 x 1.25 | 210 | 206 | 207 | 208 | 209 | 22.5 (0.885) | 17.5 (0.688) |
| 2 | M10 x 1.5 | 215 | 211 | 212 | 213 | 214 | 27.5 (1.08) | 22.0 (0.866) |
| 3 | M10 x 1.5 | 215 | 211 | 212 | 213 | 214 | Thru | Thru |
| 4 | M8 x 1.25 | 210 | 206 | 207 | 208 | 209 | Thru | Thru |
| 5 | M10 x 1.5 | 215 | 211 | 212 | 213 | 214 | 25.0 (0.984) | 19.5 (0.767) |
| 6 | M10 x 1.5 | 215 | 211 | 212 | 213 | 214 | 32.5 (1.279) | 25.0 (0.984) |
| 7 | M10 x 1.5 | 215 | 211 | 212 | 213 | 214 | Thru | Thru |
| Bolt hole 6 is drilled and tapped for aluminum block applications only. | ||||||||
