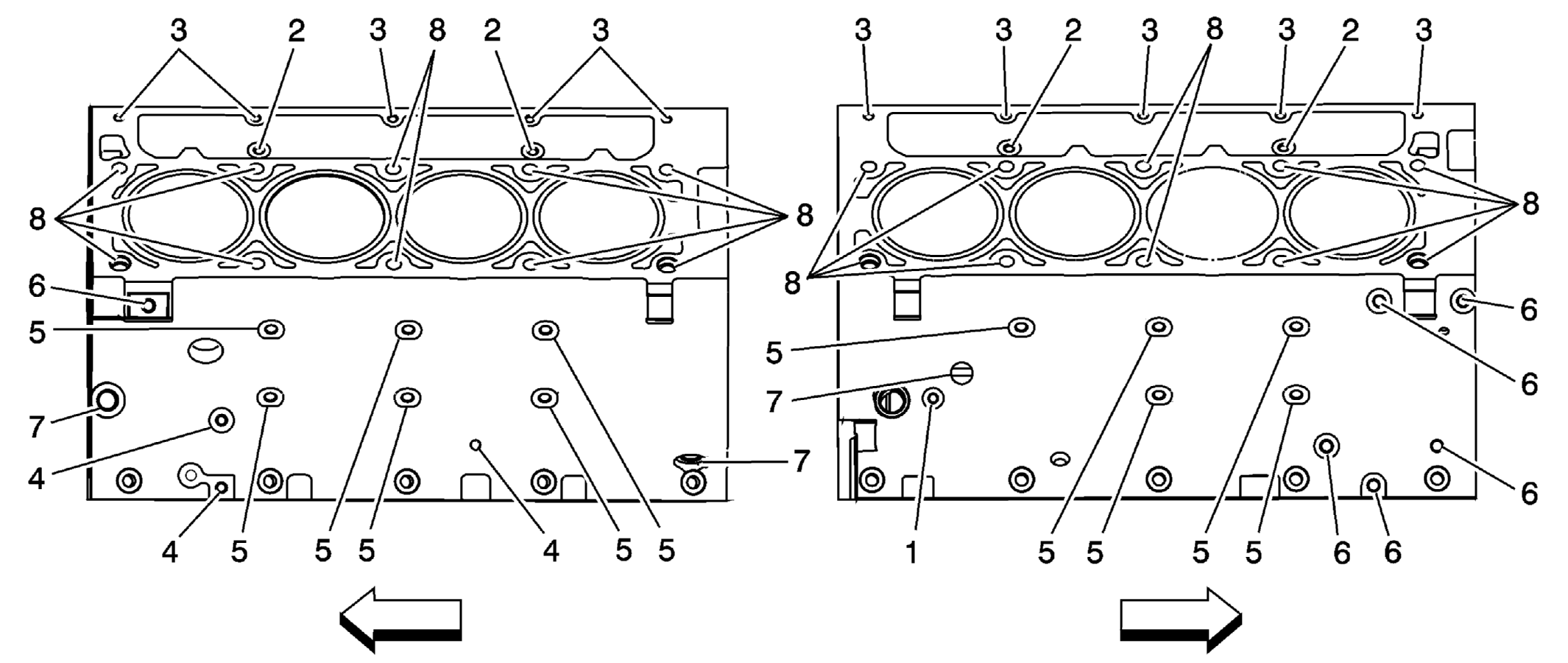

Engine Block- Left/Right Side Views
Engine Block- Left/Right Side Views
| Hole | Thread Size | Insert | Drill | Counter Bore Tool | Tap | Driver | Drill Depth- Maximum mm (in) | Tap Depth- Maximum mm (in) |
|---|---|---|---|---|---|---|---|---|
| J 42385- | ||||||||
| 1 | M8 x 1.25 | 210 | 206 | 207 | 208 | 209 | 22.5 (0.885) | 17.5 (0.688) |
| 2 | M6 x 1.0 | 205 | 201 | 202 | 203 | 204 | 22.5 (0.885) | 15.0 (0.688) |
| 3 | M8 x 1.25 | 210 | 206 | 207 | 208 | 209 | 28.5 (1.122) | 23.0 (0.905) |
| 4 | M8 x 1.25 | 210 | 206 | 207 | 208 | 209 | 21.5 (0.846) | 16.0 (0.629) |
| 5 | M10 x 1.25 | 215 | 211 | 212 | 213 | 214 | 29.0 (1.141) | 23.0 (0.905) |
| 6 | M10 x 1.5 | 215 | 211 | 212 | 213 | 214 | 27.0 (1.062) | 21.5 (0.846) |
| 7 | M16 x 1.5 | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
| 8 | M11 x 2.0 | 108 | 105 | N/A | 106 | 107 | 69.0 (2.72) | 60.0 (2.36) |
| Bolt hole 8 has a 30 mm (1.18 in) counterbore included in the 69.0 mm (2.72 in) drill depth. Use sleeve J 42385-315 with the drill and tap. | ||||||||
