Arrows and Symbols

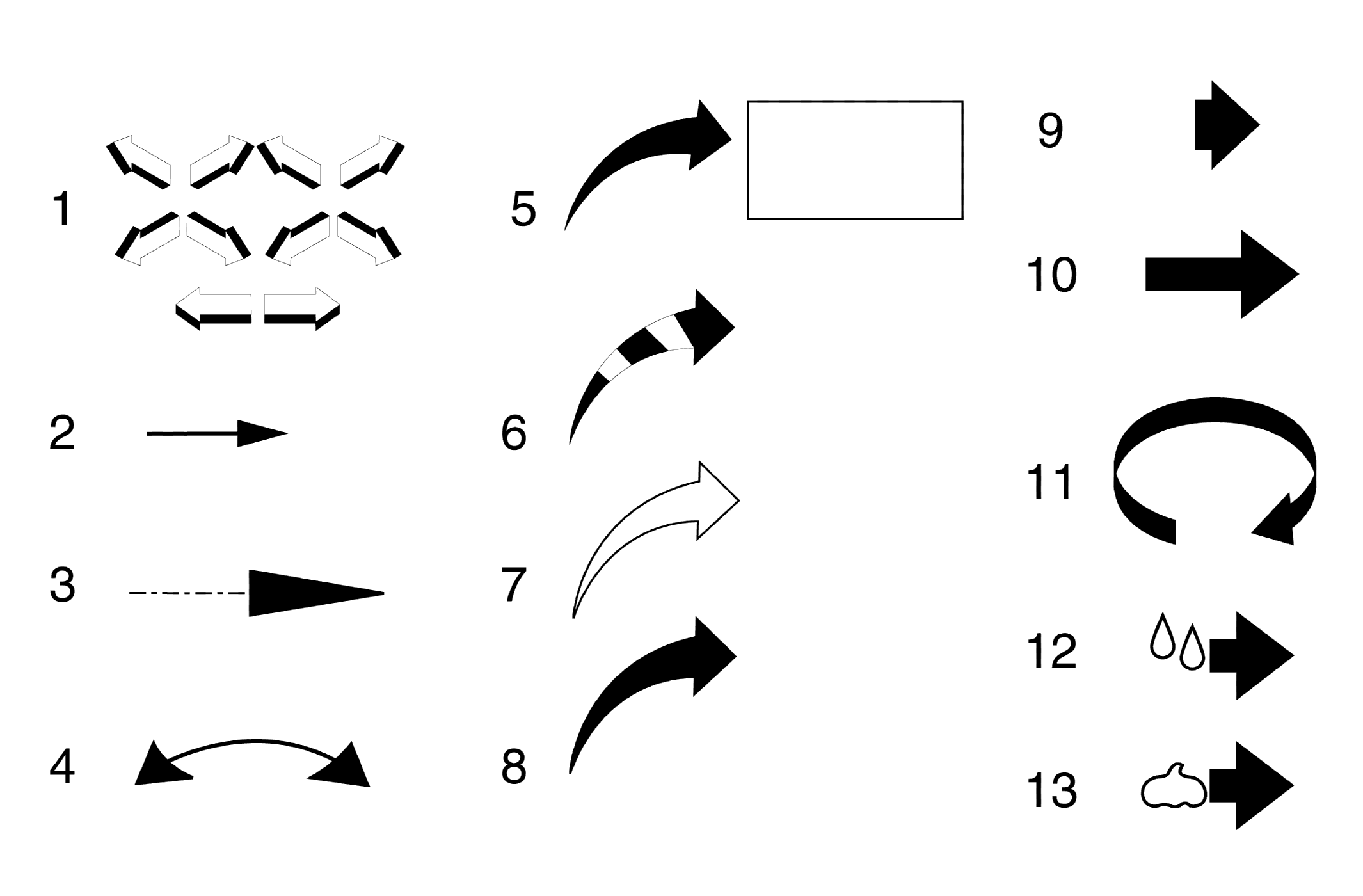

This service manual uses various symbols in order to describe different service operations.
| Callout | Component Name |
|---|---|
| 1 | Front of Vehicle |
| 2 | Dimension (1:2) |
| 3 | Sectioning (1:3) |
| 4 | Multidirectional Arrow |
| 5 | View Detail |
| 6 | Ambient Air Mixed With Another Gas or Indicate Temperature Change |
| 7 | Ambient/Clean Air Flow or Cool Air Flow |
| 8 | Gas Other Than Ambient Air or Hot Air Flow |
| 9 | View Angle |
| 10 | Task Related |
| 11 | Motion or Direction |
| 12 | Lubrication Point- Oil or Fluid |
| 13 | Lubrication Point- Grease or Jelly |
