Rearview Driver Information Camera Replacement

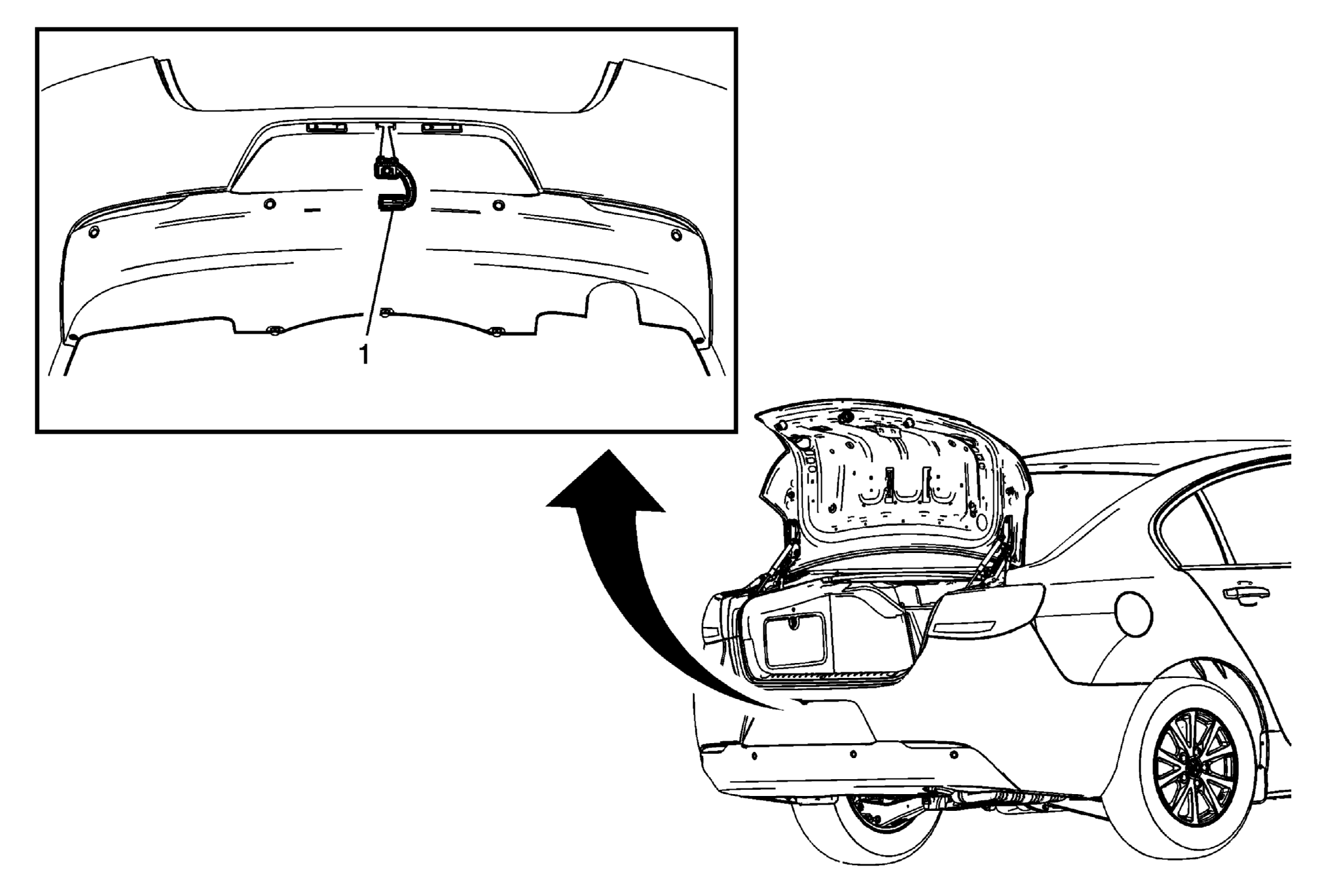

Fig 1: Rearview Driver Information Camera

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear bumper fascia. Refer to Rear Bumper Fascia Replacement .
1	Rearview Camera Procedure Disconnect the electrical connector. Depress the clip fingers and push outward to remove the rearview camera from the fascia.

Callout

Component Name

Preliminary Procedure
Remove the rear bumper fascia. Refer to Rear Bumper Fascia Replacement .

Rearview Camera

Procedure

Disconnect the electrical connector.
Depress the clip fingers and push outward to remove the rearview camera from the fascia.
