Side Object Sensing Alert Module Replacement

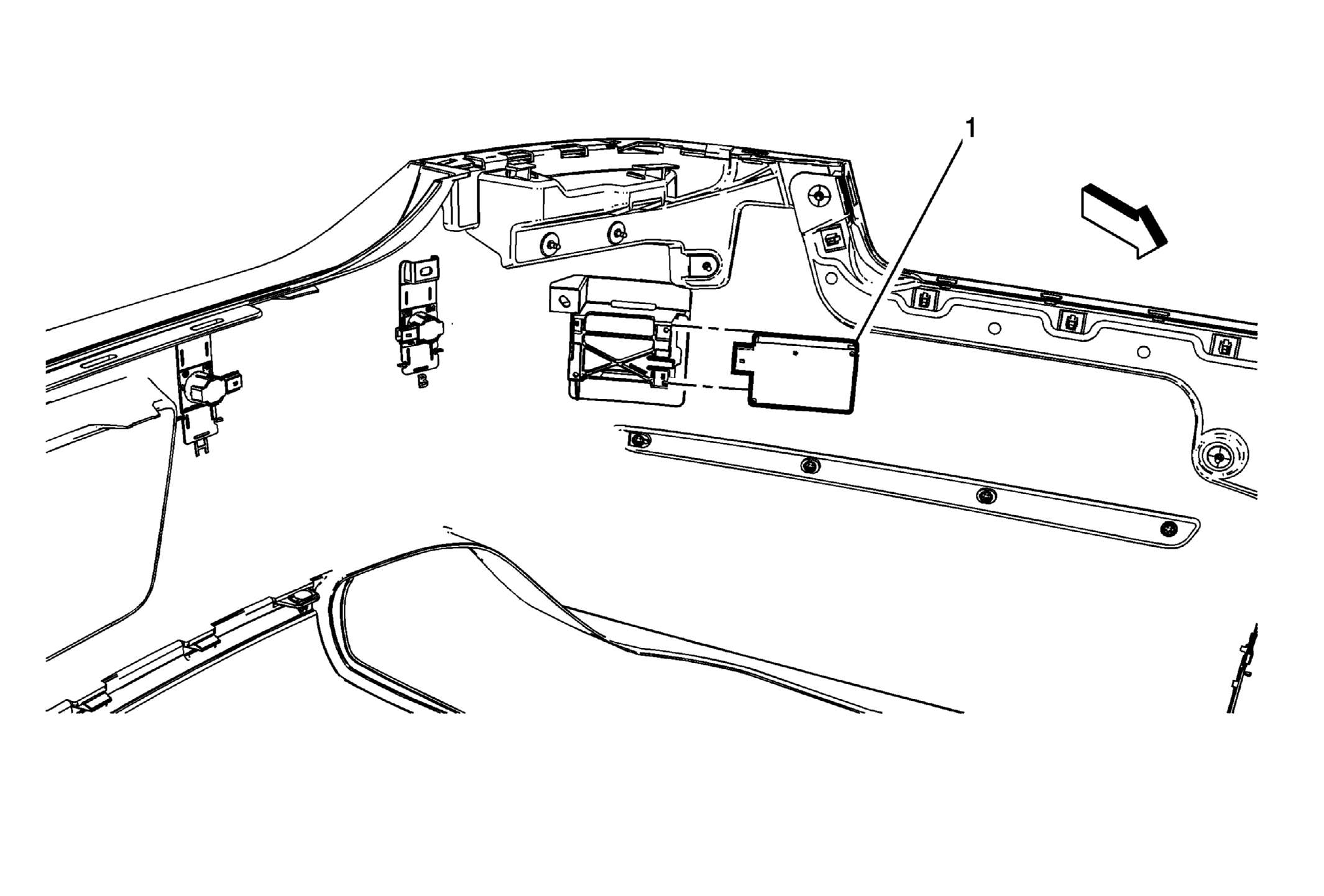

Fig 1: Side Object Sensing Alert Module

GM3285071

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedure
Remove the rear bumper fascia. Refer to Rear Bumper Fascia Replacement .

1

Side Object Sensor Module

Procedure

Disconnect the electrical connector.
Slide the module out of the retaining bracket.
Inspect side object sensing alert module bracket location Inspection After Collision (Rear Fascia Replacement Criteria) { If equipped }
Perform the necessary programming and setup procedure: Control Module References (If applicable)
