Radio Replacement

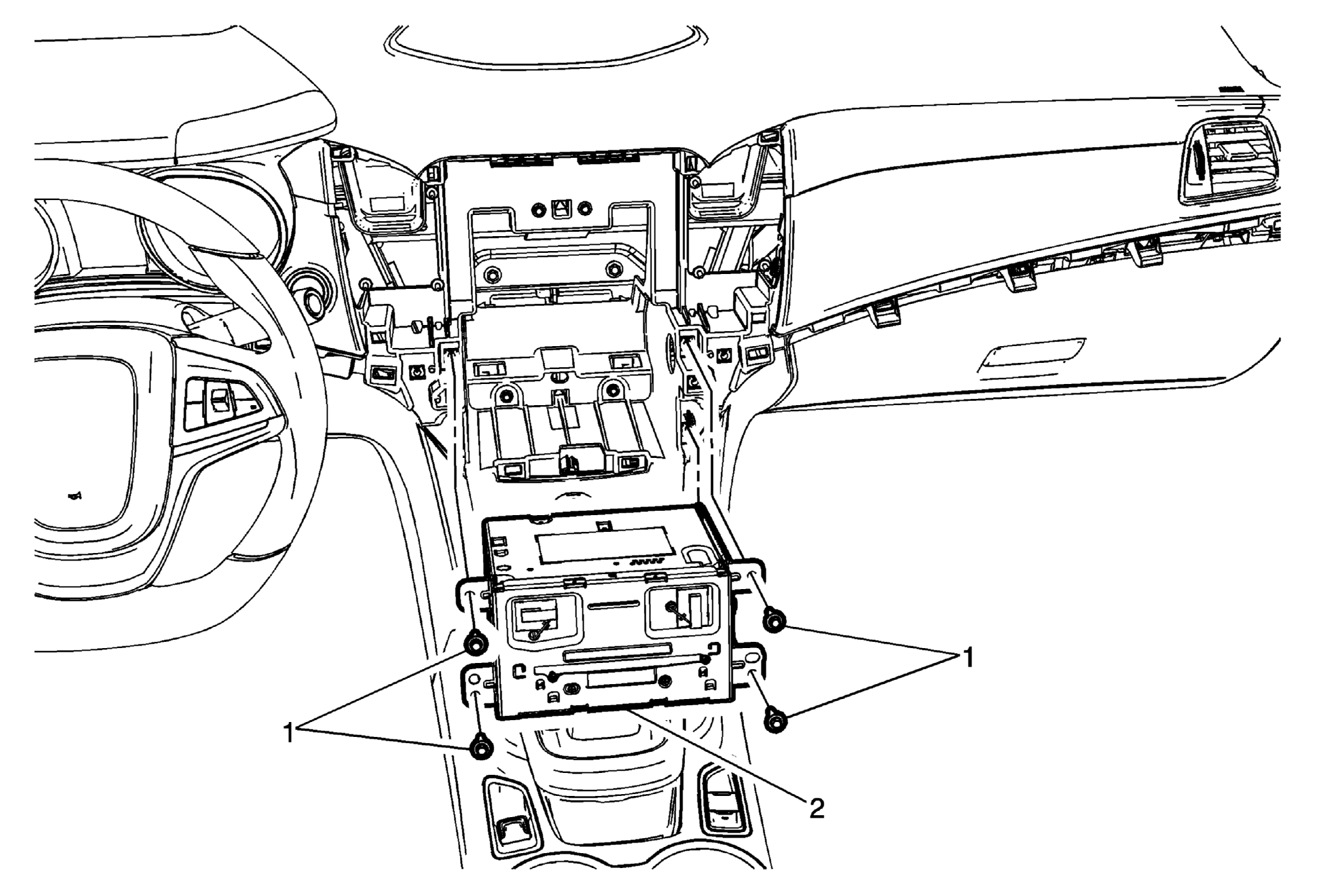

Fig 1: Radio

GM3559709

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedures

Remove the radio control assembly. Refer to Radio Control Assembly Replacement .
Remove the heater and air conditioning control. Refer to Heater and Air Conditioning Control Replacement .

1

Radio Fastener (Qty: 4)

CAUTION:

Refer to Fastener Caution .

Tighten
2.5 N.m (22 lb in)

2

Radio

Procedure

Disconnect the electrical connections.
For programming and set up, refer to Control Module References .
