Ignition Lock Key Transmitter Antenna Replacement - Instrument Panel

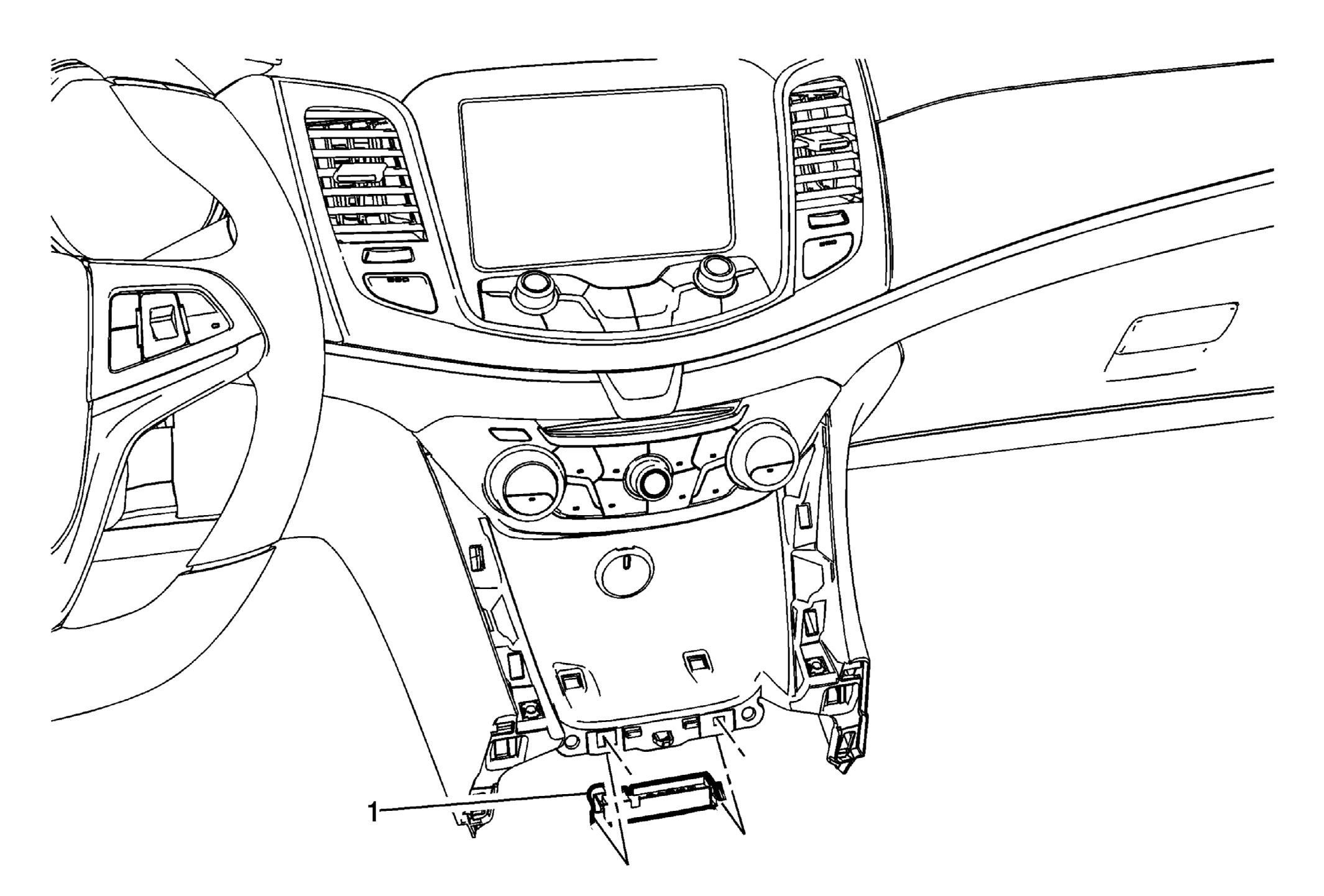

Fig 1: Ignition Lock Key Transmitter Antenna - Instrument Panel
GM3559733Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Loosen the instrument panel assembly to the point where it can be lifted to gain access to the ignition lock key transmitter antenna. Refer to Instrument Panel Assembly Replacement .
1 Ignition Lock Key Transmitter Antenna

Procedure

  1. Disconnect the electrical connector.
  2. Unsnap the antenna from the instrument panel.
