Front Side Door Window Regulator Replacement

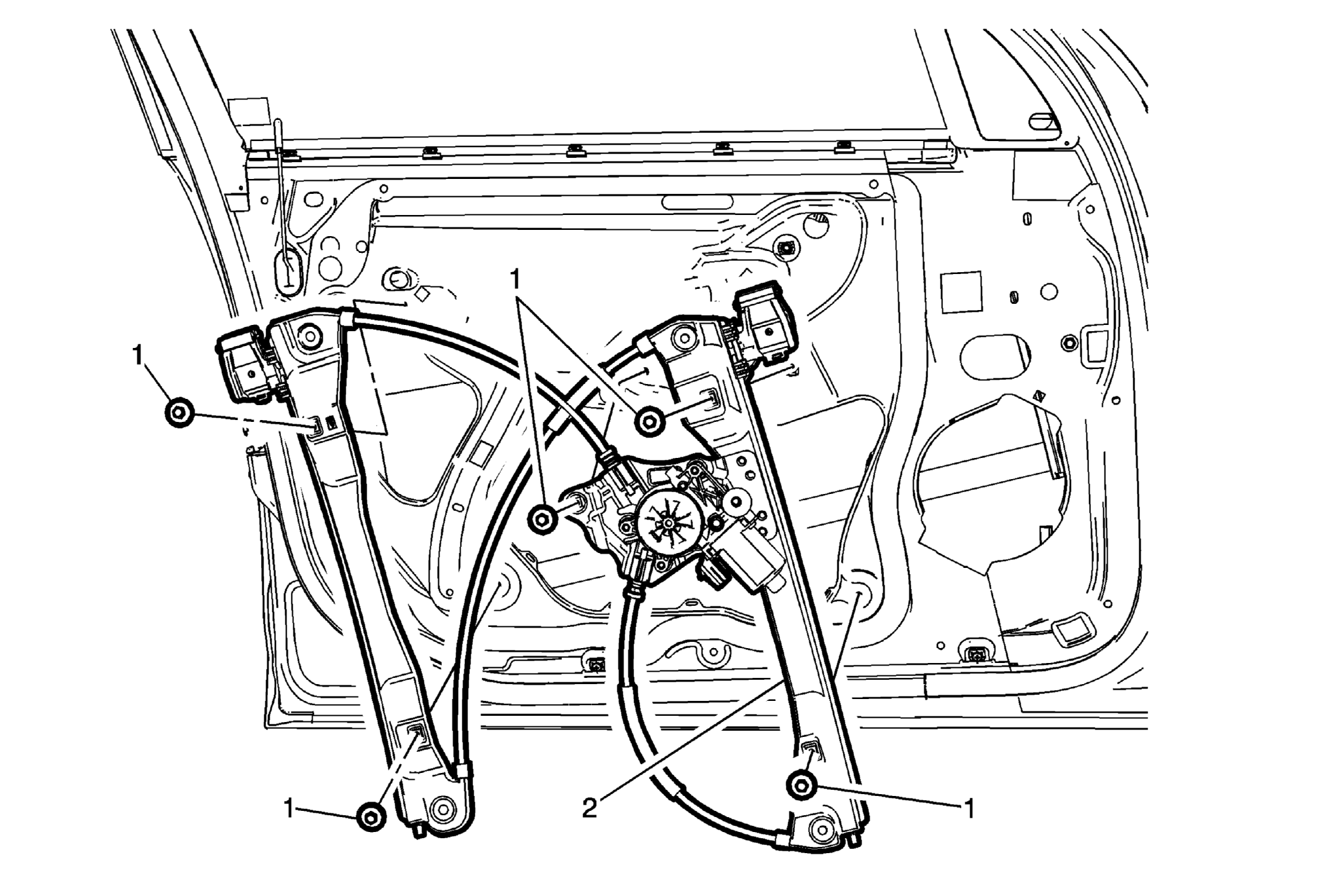

Fig 1: Front Side Door Window Regulator
GM2914409Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedure

  1. Remove the front side door trim. Refer to Front Side Door Trim Replacement .
  2. Remove the water deflector.
1 Front Side Door Window Regulator Bolt (Qty: 5)
WARNING:

Refer to Glass and Sheet Metal Handling Warning .

CAUTION:

Refer to Fastener Caution .

Procedure

  1. Position the window in the full up position to access the 2 window guide bolts. Refer to Front Side Door Window Replacement .
  2. Tape the window in the full up position.

Tighten
11 N.m (97 lb in)
2 Front Side Door Window Regulator

Procedure

  1. Disconnect the front side door window regulator electrical connector.
  2. Transfer the front side door window regulator motor. Refer to Front Side Door Window Regulator Motor Replacement .
NOTE:

Inspect the door window for proper operation before installing the door trim.
