Front Side Door Window Weatherstrip Replacement

Preliminary Procedures

1. Place the window in the full down position.
2. Remove the outside rearview mirror. Refer to Outside Rearview Mirror Replacement .
3. Remove front side door window. Refer to Front Side Door Window Replacement .

Procedure

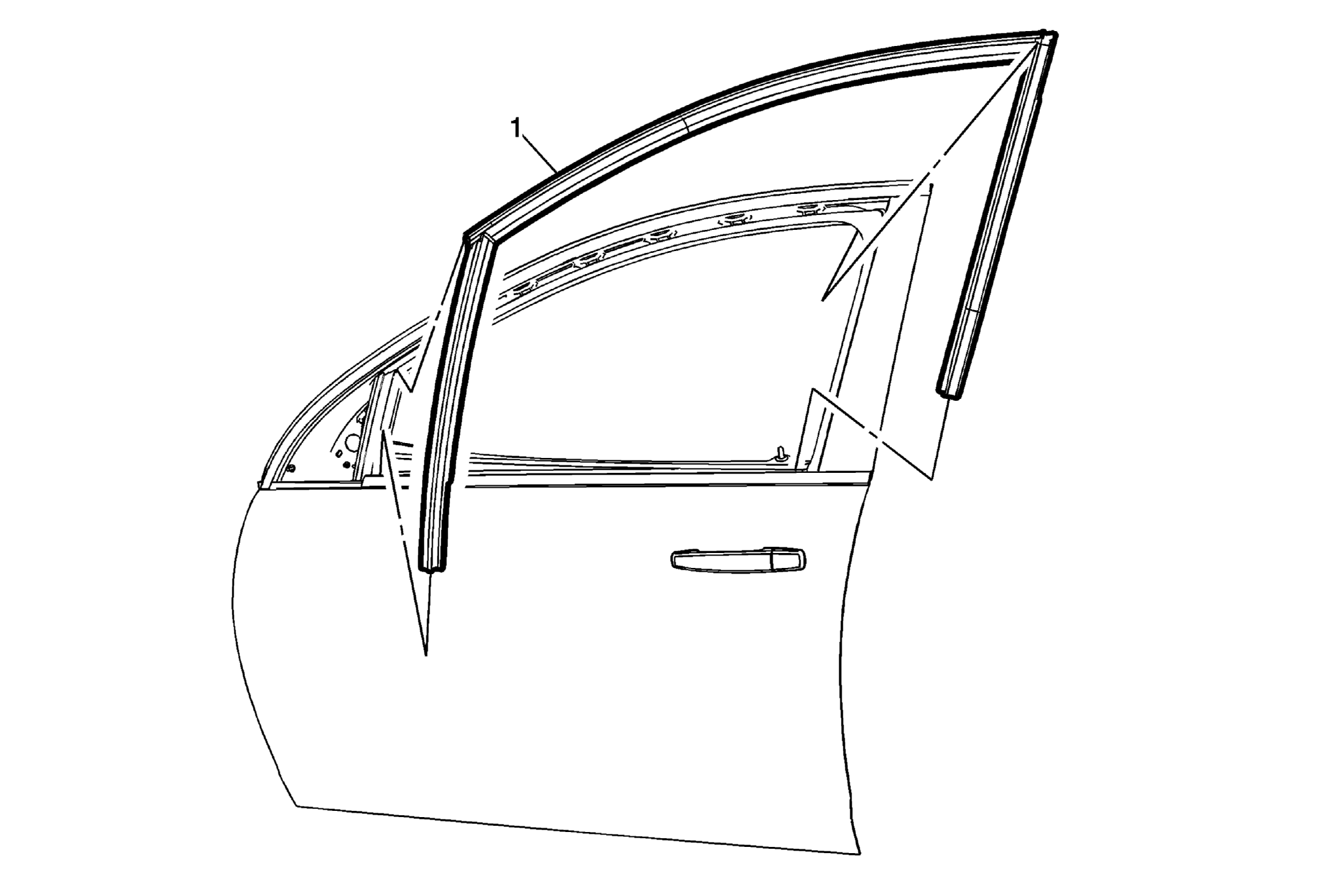

1. Grasp both upper corners of the window weatherstrip, pull downward releasing the assembly from the door frame.
2. Insert the weatherstrip downward in the front guide until fully seated.
3. Position the window weatherstrip in the upper rear corner of the frame, work the weatherstrip around the door frame.
4. Carefully move the regulator upward for short slow intervals, while ensuring that the window remains in the guide.
