Installation Procedure

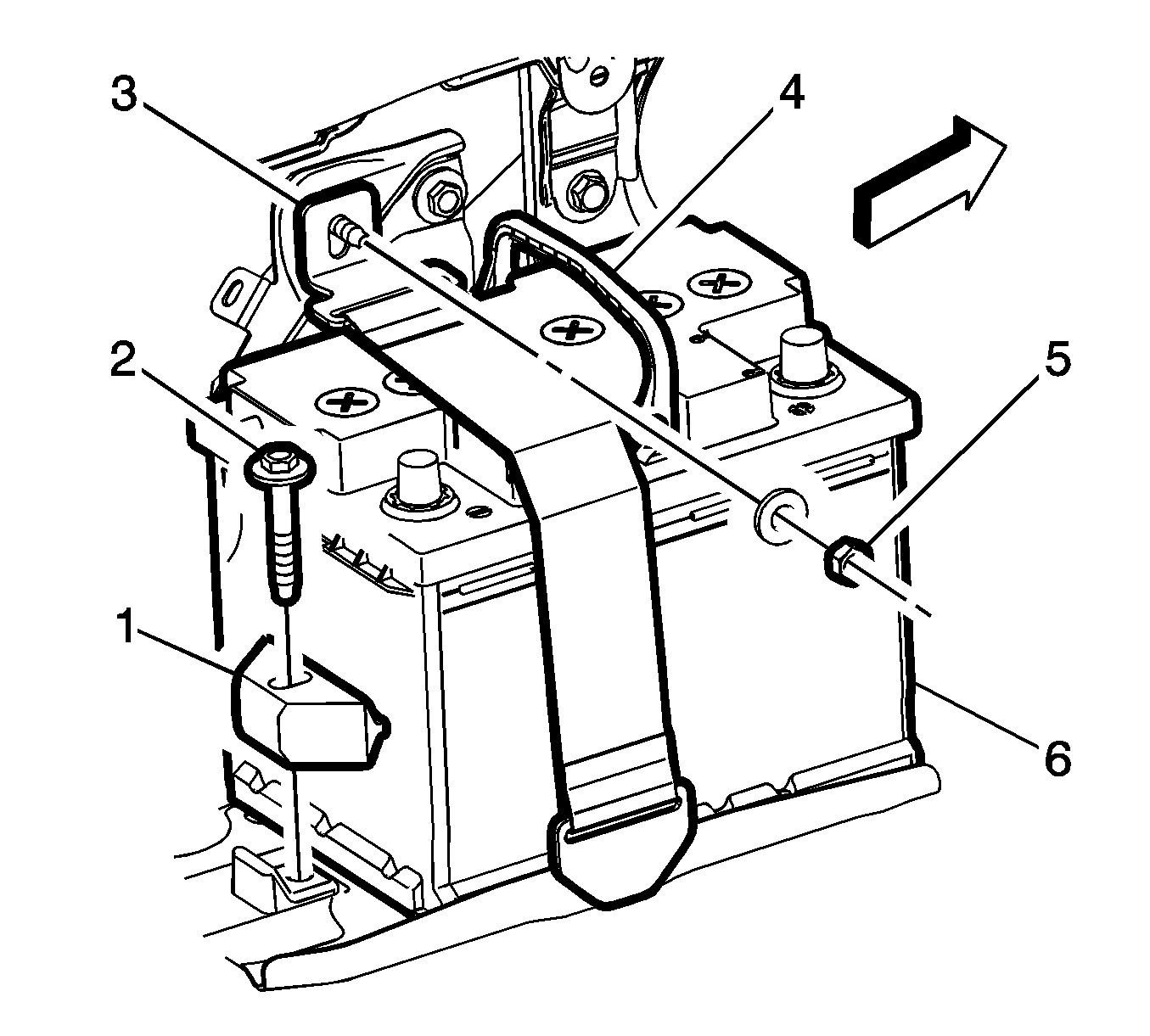

Fig 1: Battery & Mounting Components

GM3277203

Courtesy of GENERAL MOTORS COMPANY

Install the battery (6) into position.

CAUTION:

Refer to Fastener Caution .

Install the battery hold down retainer (1) and tighten the fastener (2) to 17 N.m (13 lb ft).
Install the battery strap (3) and tighten the fastener (5) to 22 N.m (16 lb ft).

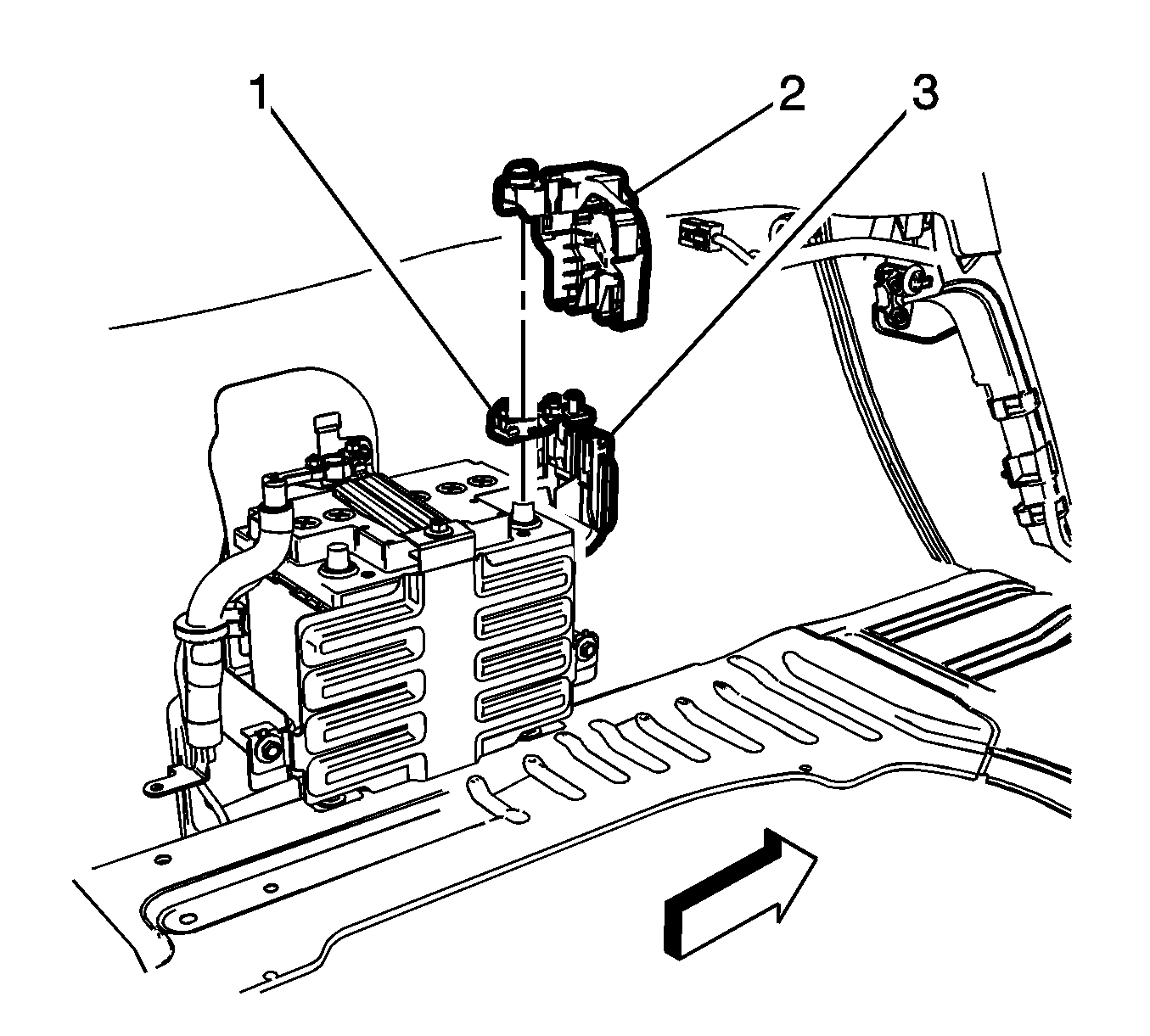

Fig 2: Battery Positive Cable, Cover & Fastener

GM3274165

Courtesy of GENERAL MOTORS COMPANY

Install the battery positive cable (3) to the battery positive post and tighten the fastener (1) to 5 N.m (44 lb in).
Install the battery positive cable post cover (2).
Connect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
Install the rear compartment side trim panel. Refer to Rear Compartment Side Trim Panel Replacement (Left Side)Rear Compartment Side Trim Panel Replacement (Right Side) .
