Installation Procedure

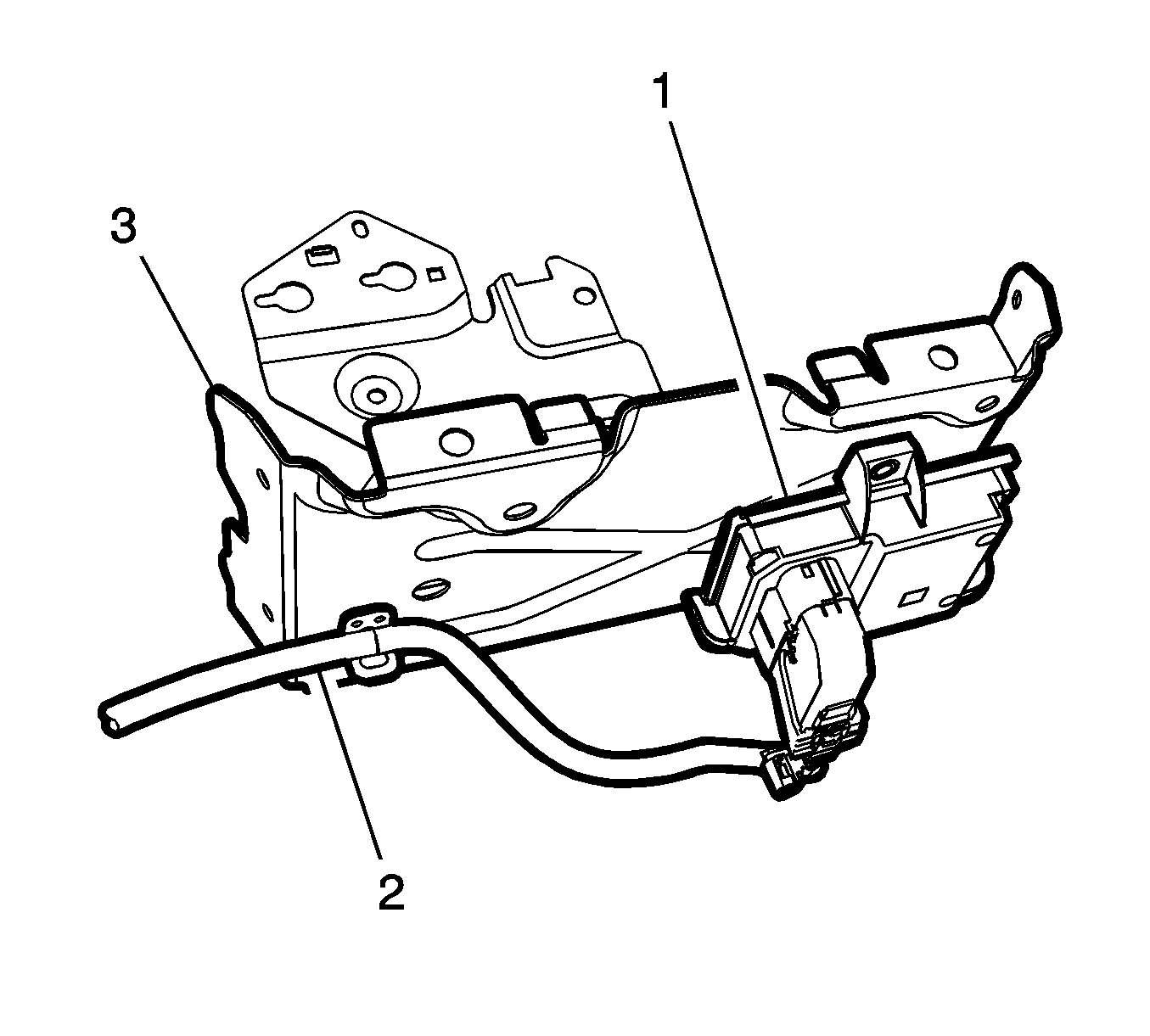

    Fig 1: Fuel Pump Flow Control Module
    GM2549062Courtesy of GENERAL MOTORS COMPANY
  1. Install the fuel pump flow control module (1) and the harness retainer (2) to the underside of the battery tray (3).

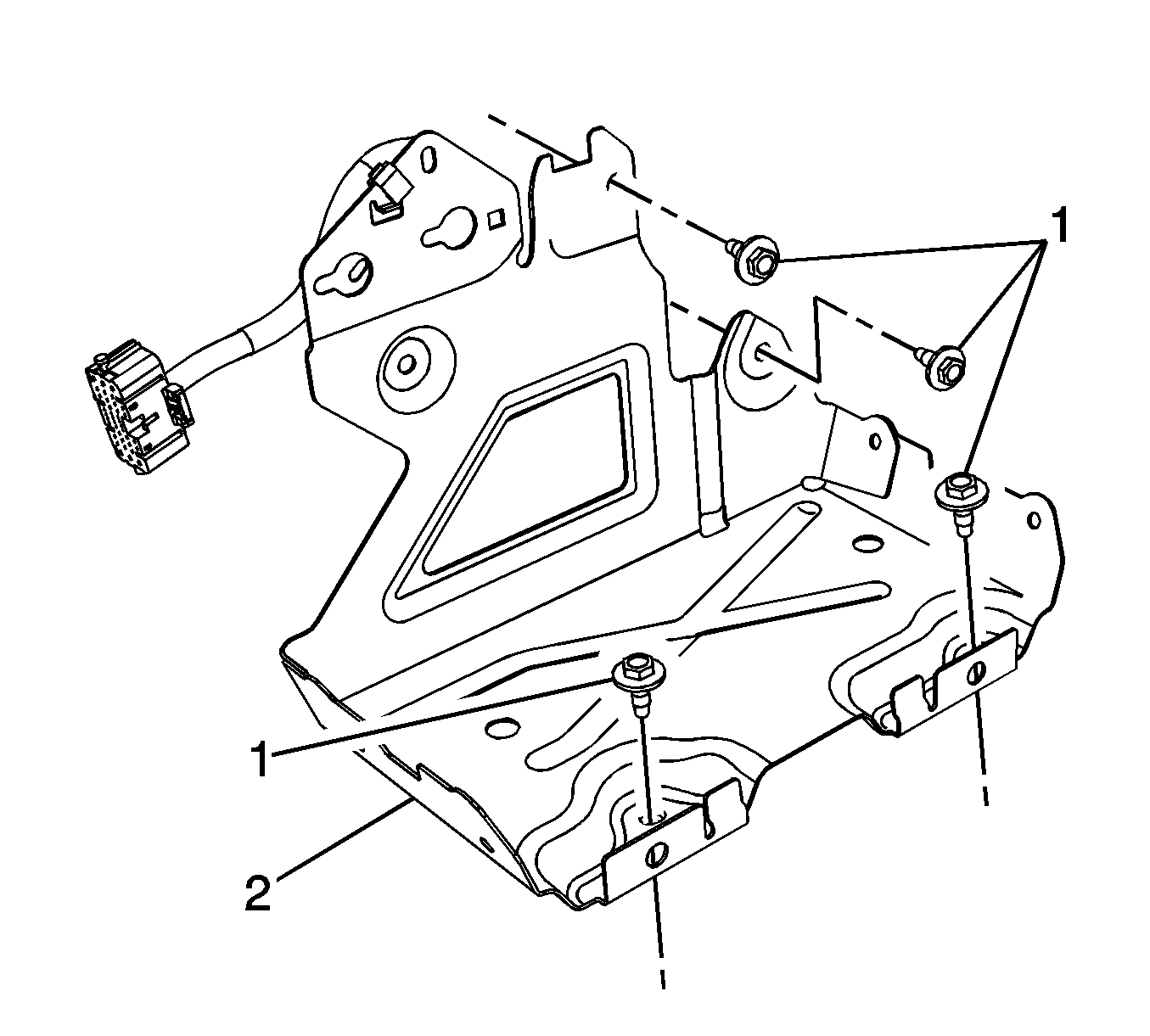

    2. Fig 2: Battery Tray Mounting Bolts
    GM2549028Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  2. Install the battery tray mounting bolts (1) and tighten to 25 N.m (18 lb ft).
  3. Connect any harness retainers to the battery tray.
  4. Install the battery. Refer to Battery Replacement .
