Front of Instrument Panel Components

Items
1. S30 Headlamp Switch S30 Headlamp Switch
2. S27 Head-Up Display Switch S27 Head-Up Display Switch
3. P16 Instrument Cluster P16 Instrument Cluster
4. P29 Head-Up Display P29 Head-Up Display
5. S38 Ignition Mode Switch S38 Ignition Mode Switch
6. P19B Speaker - Center Instrument Panel P19B Speaker - Center Instrument Panel
7. B10B Ambient Light/Sunload Sensor B10B Ambient Light/Sunload Sensor
8. A11 Radio A11 Radio X1 A11 Radio X10 A11 Radio X4 A11 Radio X5 A11 Radio X7
9. F101 Passenger Instrument Panel Air Bag F101 Passenger Instrument Panel Air Bag X1 F101 Passenger Instrument Panel Air Bag X2
10. S26 Hazard Warning Switch
11. F114P Knee Air Bag - Passenger F114P Knee Air Bag - Passenger F114P Knee Air Bag - Passenger X2
12. A26 HVAC Controls A26 HVAC Controls
13. E27 Instrument Panel Compartment Lamp E27 Instrument Panel Compartment Lamp
14. X80F Accessory Power Receptacle - Front X80F Accessory Power Receptacle - Front
15. X84 Data Link Connector X84 Data Link Connector
16. F114D Knee Air Bag - Driver F114D Knee Air Bag - Driver F114D Knee Air Bag - Driver X2

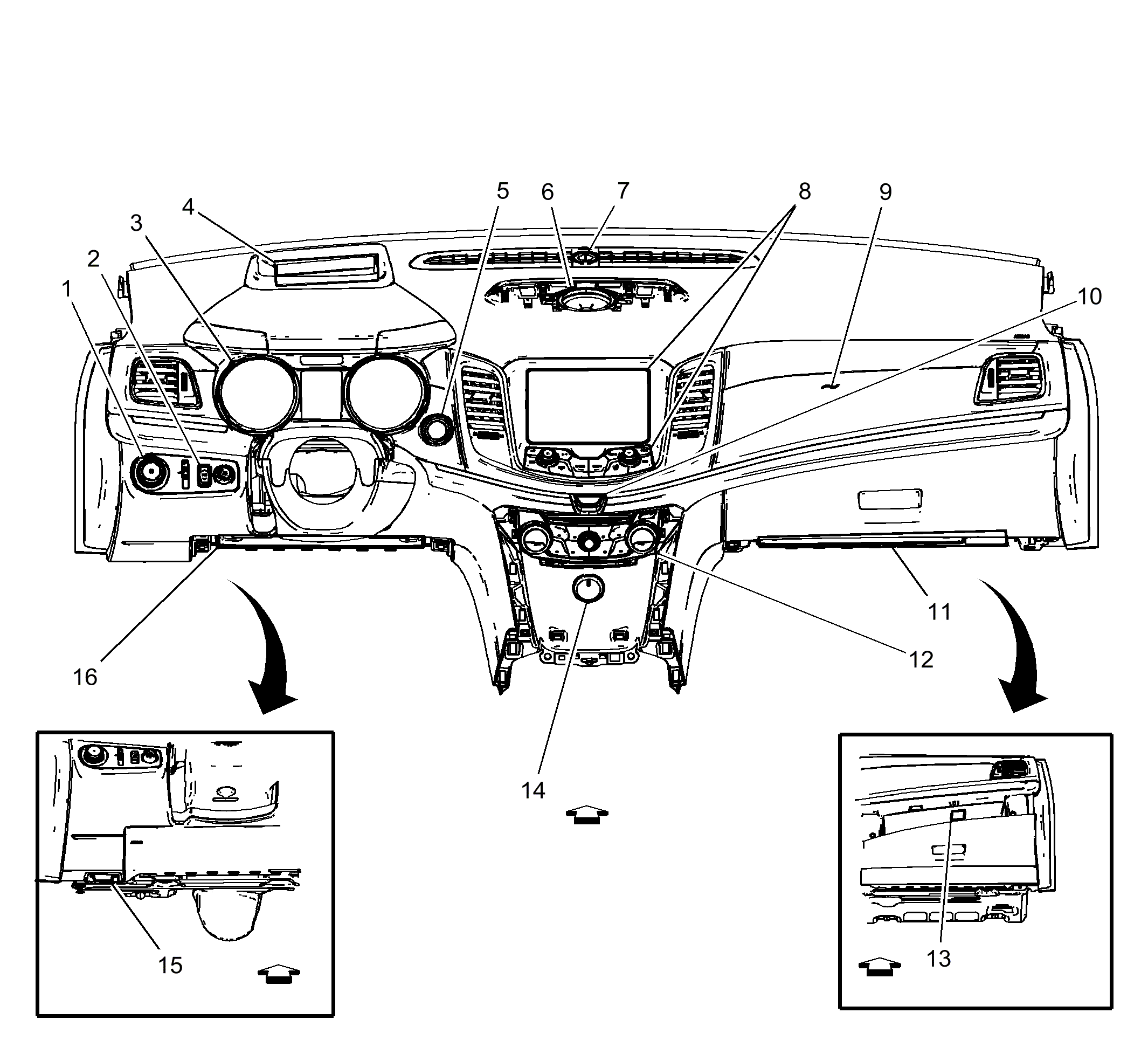

Fig 1: Front of Instrument Panel Components

Courtesy of GENERAL MOTORS COMPANY
