Rear of Engine Components

Rear of Engine Components

Items
1. B37B Engine Oil Pressure Sensor B37B Engine Oil Pressure Sensor
2. B75B Mass Air Flow/Intake Air Temperature Sensor B75B Mass Air Flow/Intake Air Temperature Sensor

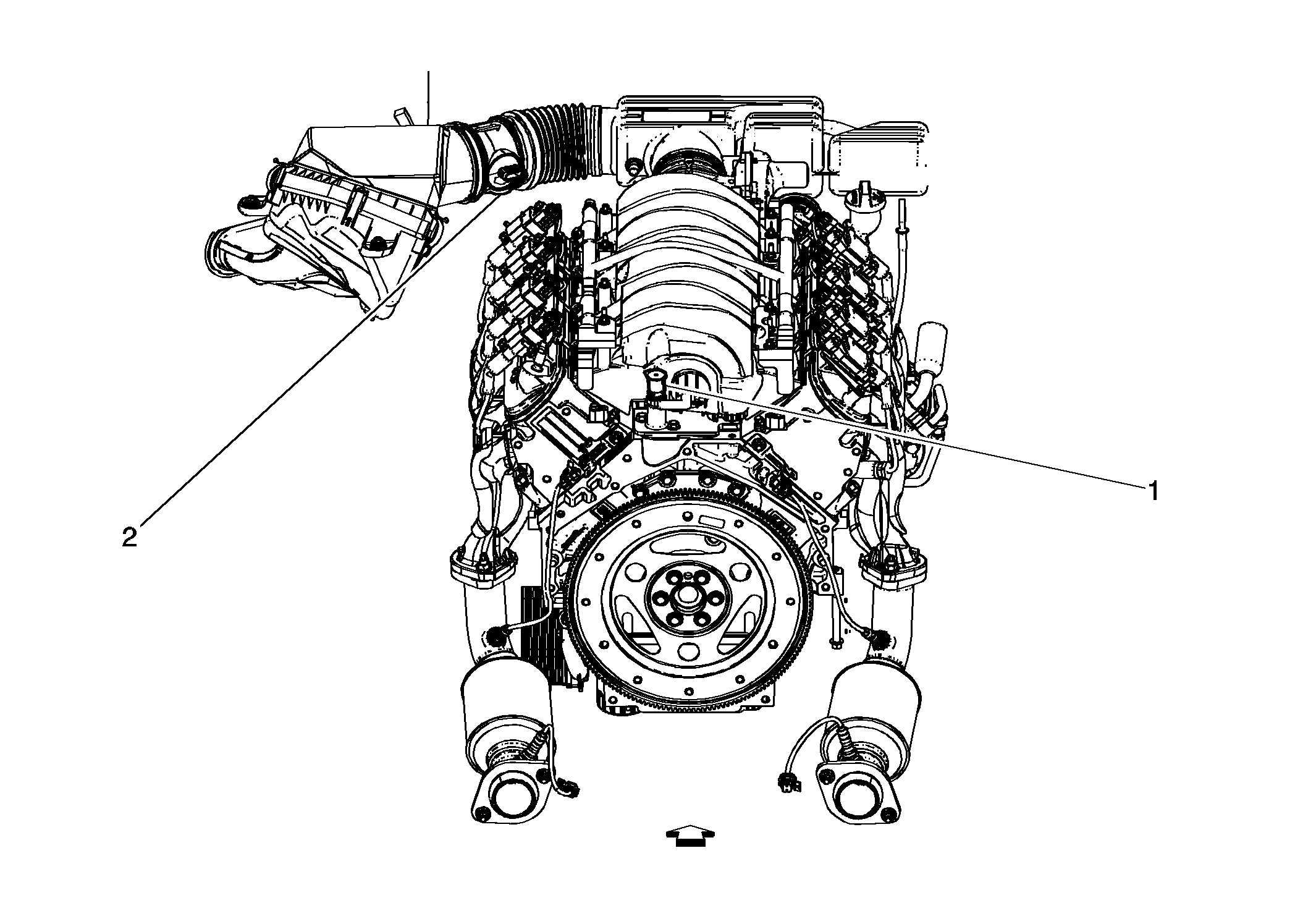

Fig 1: Rear of Engine Components
GM3600190Courtesy of GENERAL MOTORS COMPANY
