Installation Procedure

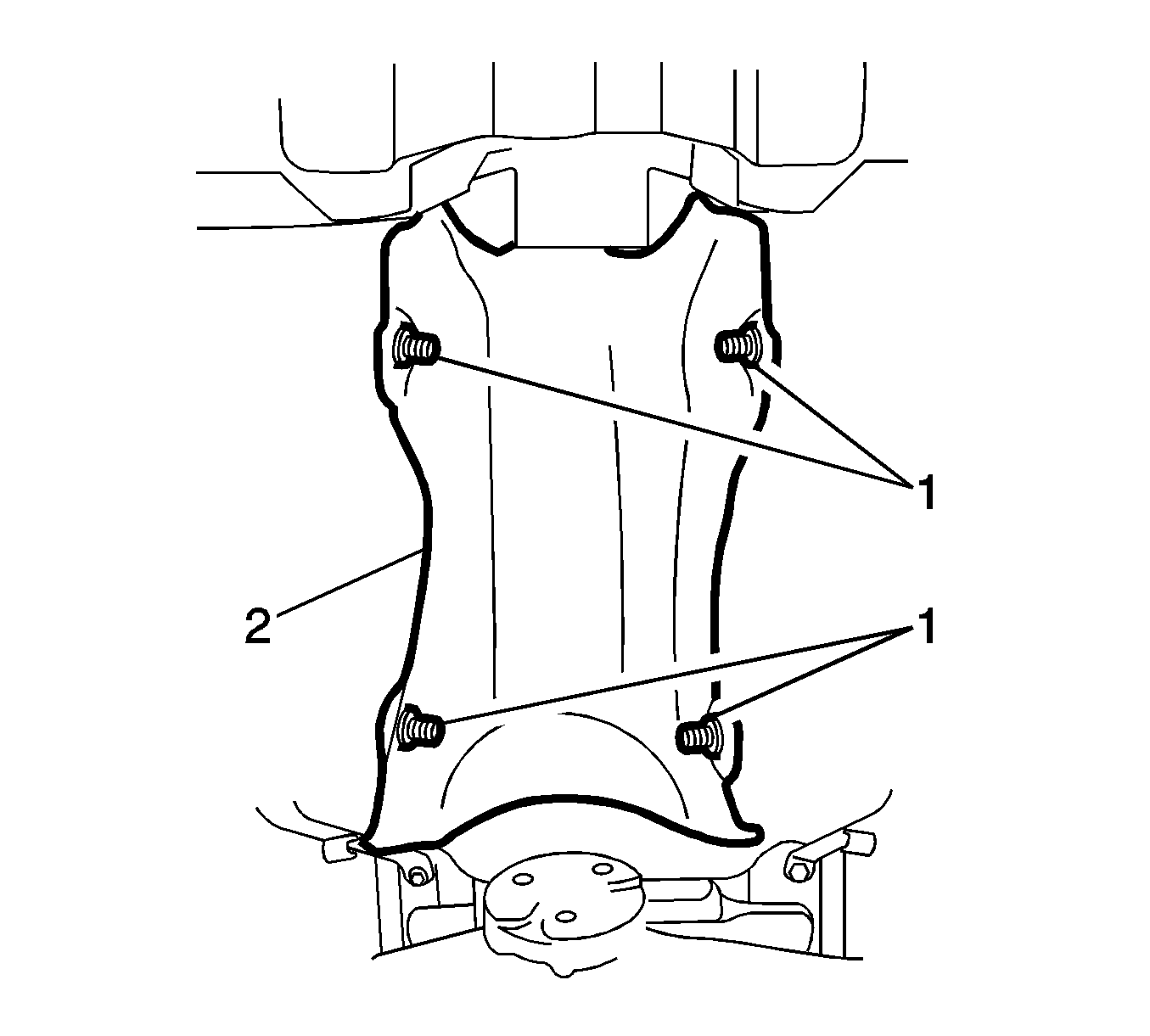

    Fig 1: Fuel Tank Heat Shield To Fuel Tank Retaining Nuts
    GM1947049Courtesy of GENERAL MOTORS COMPANY
  1. Position the fuel tank heat shield (2) to the vehicle.
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the fuel tank heat shield to fuel tank retaining nuts (1) and tighten to 4 N.m (35 lb in).
  3. Lower the vehicle to the ground.
