Fuel Tank Fuel Pump Module Fuel Level Sensor Replacement

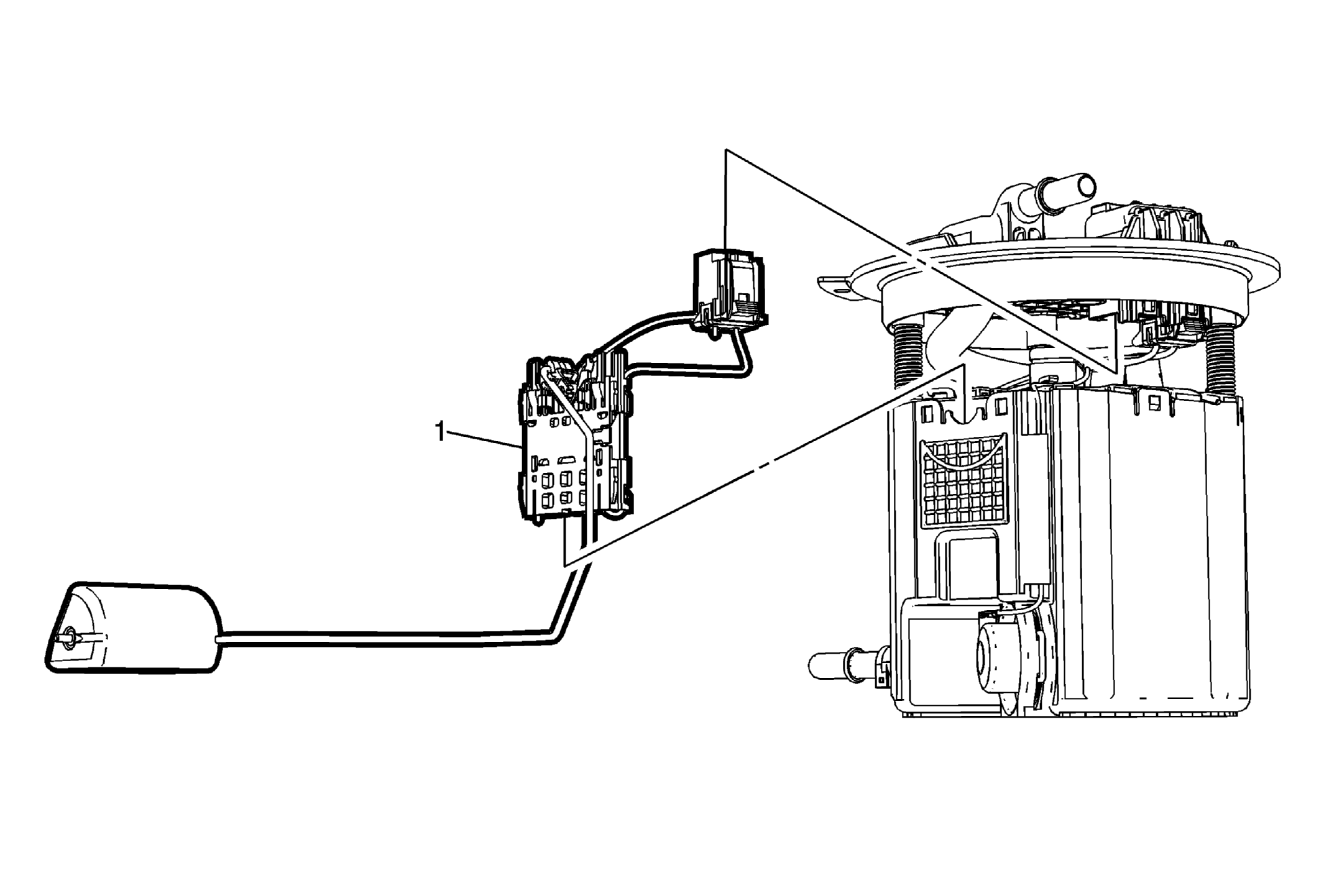

Fig 1: Fuel Tank Fuel Pump Module Fuel Level Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: To avoid any vehicle damage, serious personal injury or death when major components are removed from the vehicle and the vehicle is supported by a hoist, support the vehicle with jack stands at the opposite end from which the components are being removed and strap the vehicle to the hoist. WARNING: Refer to Gasoline/Gasoline Vapors Warning . WARNING: Refer to Safety Glasses Warning . Preliminary Procedures Remove the primary fuel tank fuel pump module. Refer to Primary Fuel Tank Module Replacement . Disconnect the electrical connector.
1	Primary Fuel Level Sensor Procedure Release tabs and slide primary fuel level sensor up to remove.

Callout

Component Name

WARNING:

To avoid any vehicle damage, serious personal injury or death when major components are removed from the vehicle and the vehicle is supported by a hoist, support the vehicle with jack stands at the opposite end from which the components are being removed and strap the vehicle to the hoist.

WARNING:

Refer to Gasoline/Gasoline Vapors Warning .

WARNING:

Refer to Safety Glasses Warning .

Preliminary Procedures

Remove the primary fuel tank fuel pump module. Refer to Primary Fuel Tank Module Replacement .
Disconnect the electrical connector.

Primary Fuel Level Sensor
Procedure
Release tabs and slide primary fuel level sensor up to remove.
