LEMON Manuals
: Even more car manuals for everyone: 1960-2025
Home
>>
Chevrolet
>>
2016
>>
SS Automatic Trans
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Data Communication System
>>
Schematic Wiring Diagrams
>>
Data Communication Wiring Schematics
>>
High Speed
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
High Speed

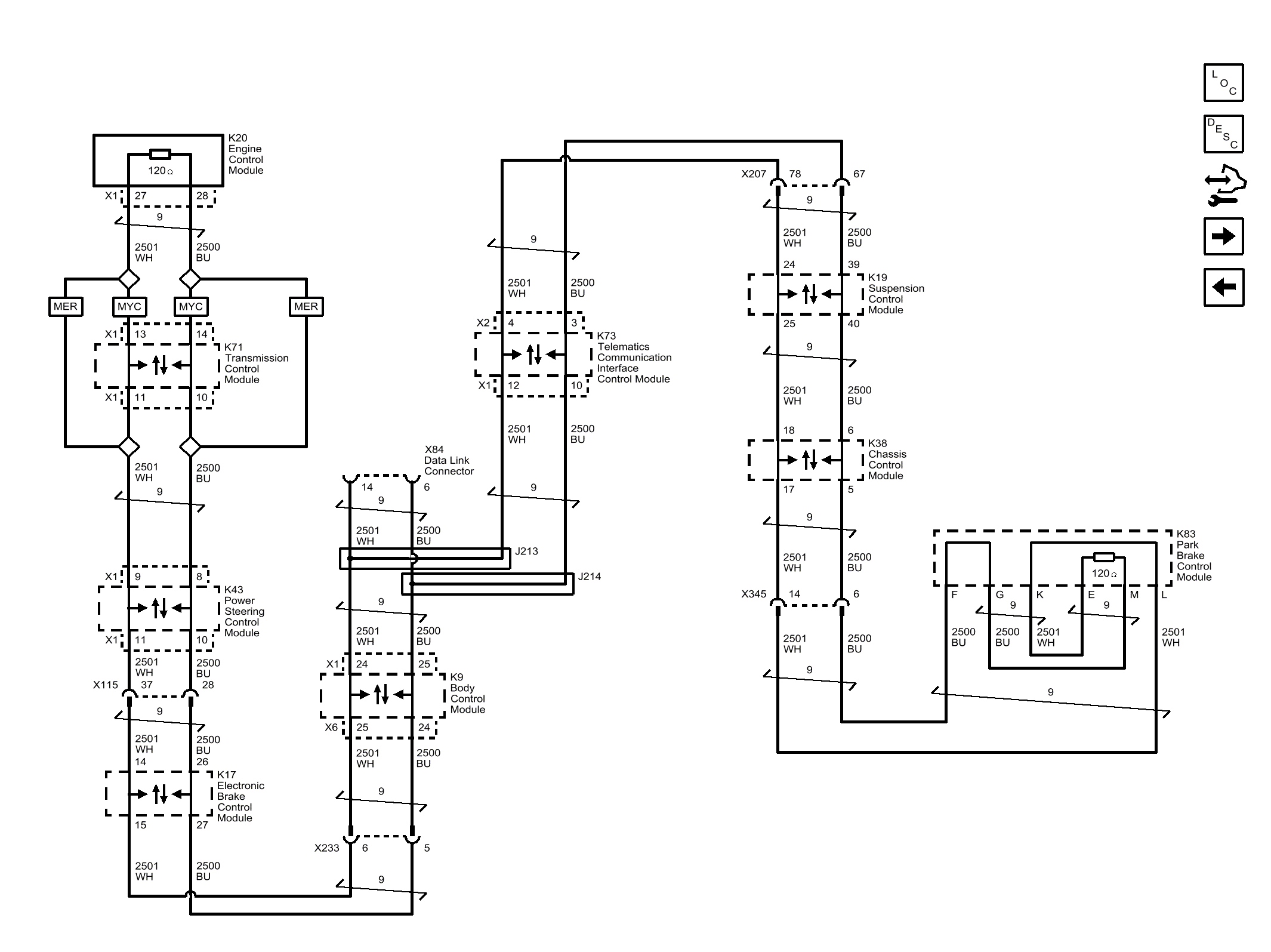

Fig 1: High Speed
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
