Installation Procedure

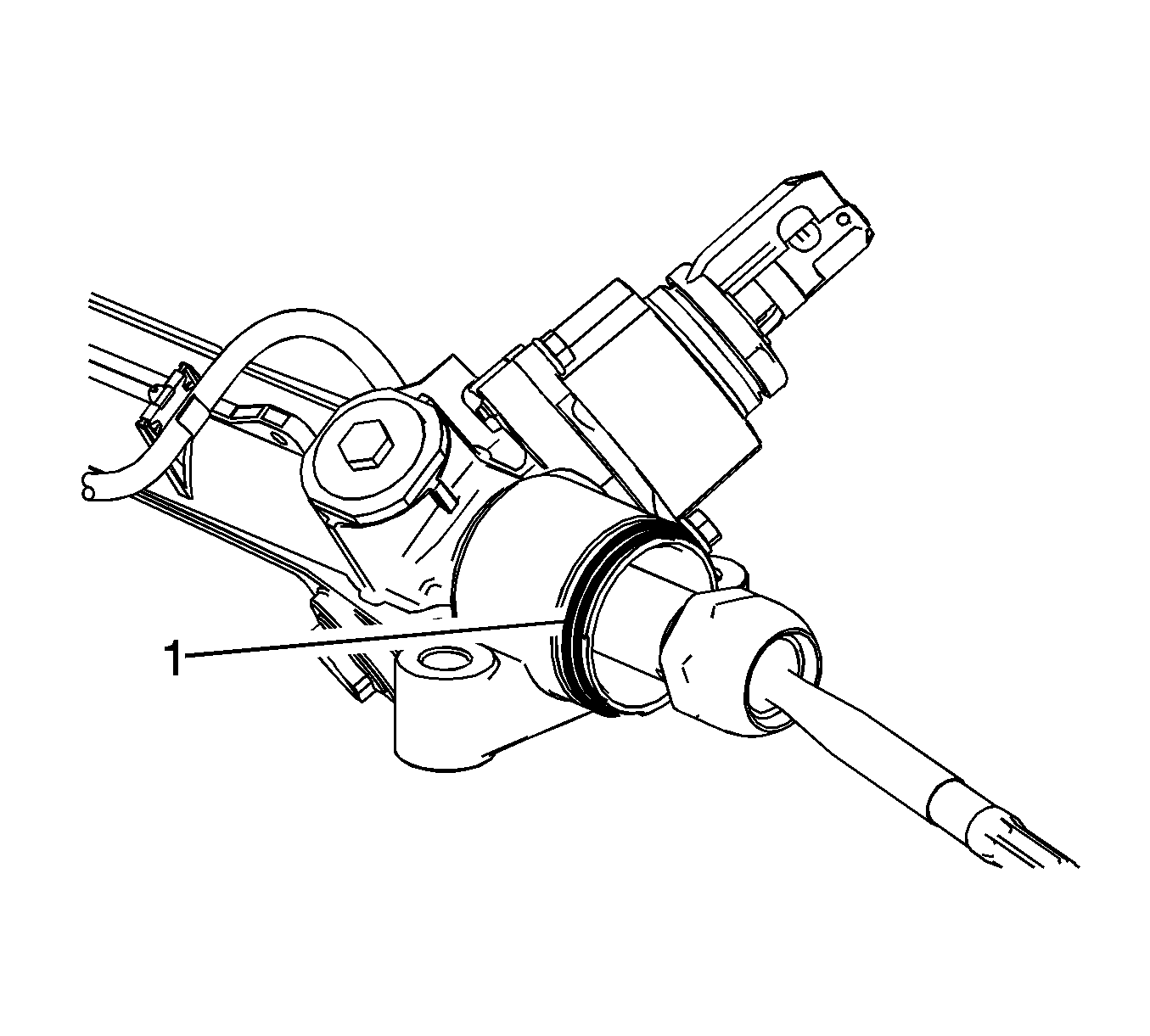

Fig 1: Steering Gear Boot Seal

Courtesy of GENERAL MOTORS COMPANY

Install the steering gear boot seal (1) on the steering gear housing.
Apply a small amount of Lithium Grease or equivalent to the seal before installing.

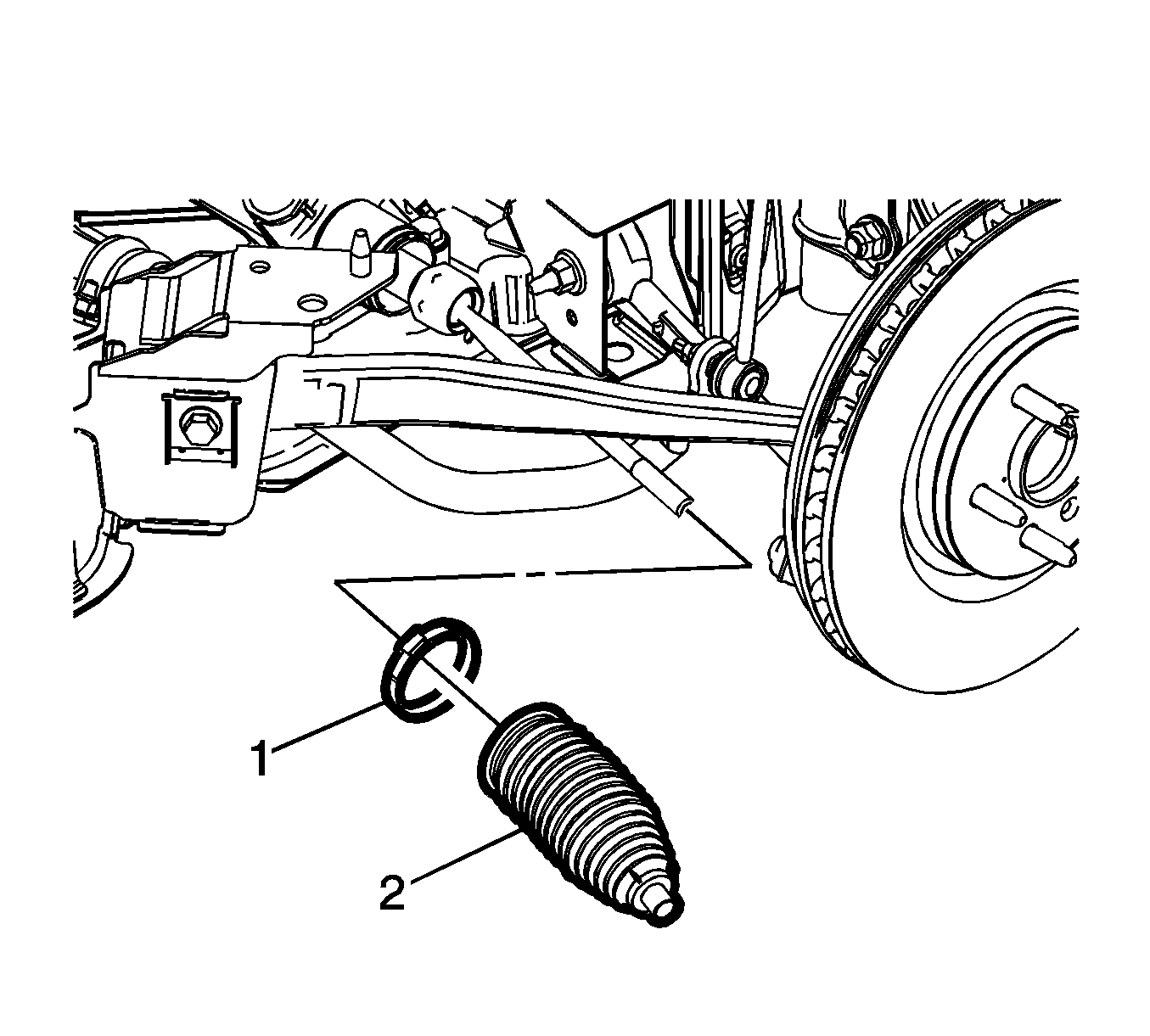

Fig 2: Steering Gear Boot & Inner Clamp

Courtesy of GENERAL MOTORS COMPANY

Position a NEW steering gear boot inner clamp (1) and steering gear boot (2) on the steering gear.
Apply a small amount of Lithium Grease or equivalent to the inside of both ends of the steering gear boot before installing.
Use the CH-22610 pliers to crimp the steering gear boot inner clamp (1).

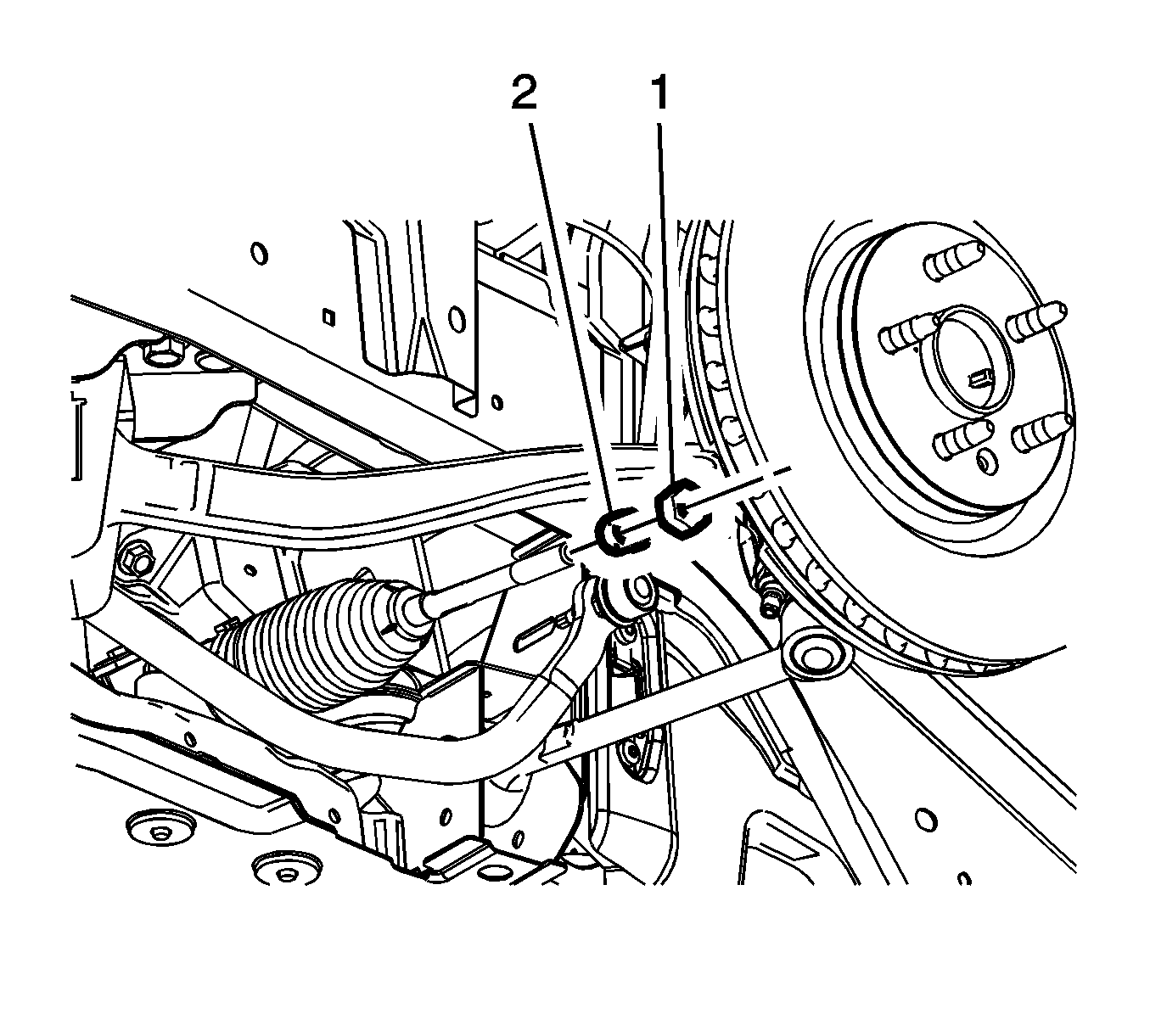

Fig 3: Steering Linkage Inner Tie Rod Nut & Steering Gear Boot Outer Clamp

Courtesy of GENERAL MOTORS COMPANY

NOTE:

Align the match marks on the steering linkage inner tie rod nut and the steering linkage inner tie rod previously recorded.
Do NOT tighten the steering linkage inner tie rod nut during installation. Tighten the nut after adjusting the front toe.

Install the steering linkage inner tie rod nut (1).
Install Steering Linkage Outer Tie Rod - Steering Linkage Outer Tie Rod Replacement
Measure and adjust the front toe. Wheel Alignment - Steering Wheel Angle and/or Front Toe Adjustment
