Wheel Alignment - Steering Wheel Angle and/or Front Toe Adjustment
- Before performing any adjustment affecting the wheel alignment, refer to Wheel Alignment Measurement .
- Ensure that the steering wheel is set in a straight ahead position.

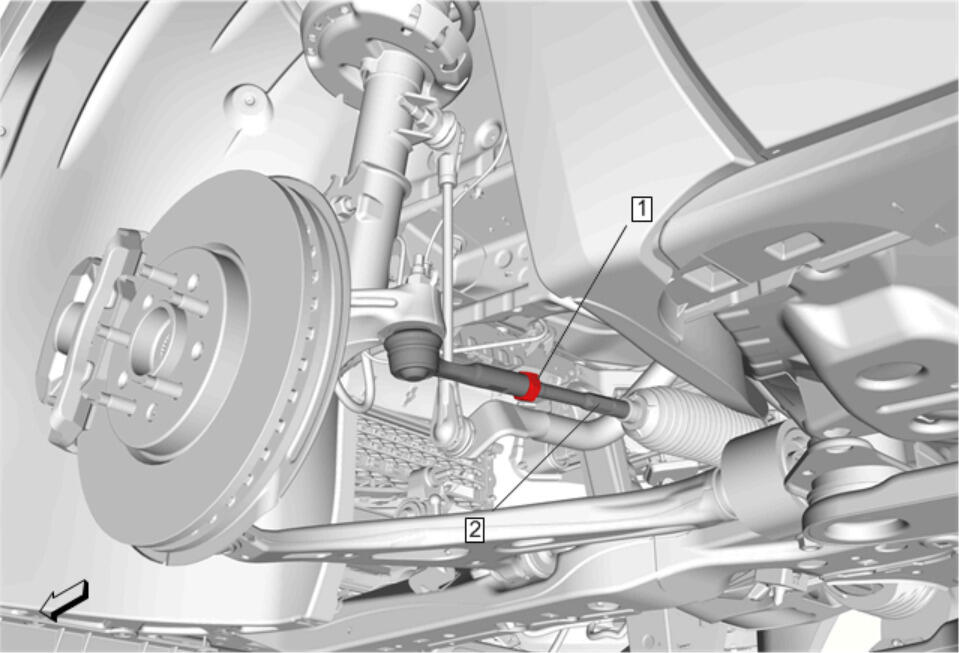

- Loosen the tie rod jam nut (1).
- Adjust the toe to specification by turning the tie rod (2). Refer to Wheel Alignment Specifications .CAUTION:
Refer to Fastener Caution .
- Tighten the tie rod jam nut (1) to: 68 N.m (50 lb ft).
- Steering Wheel Angle Sensor Centering
