Passive Entry

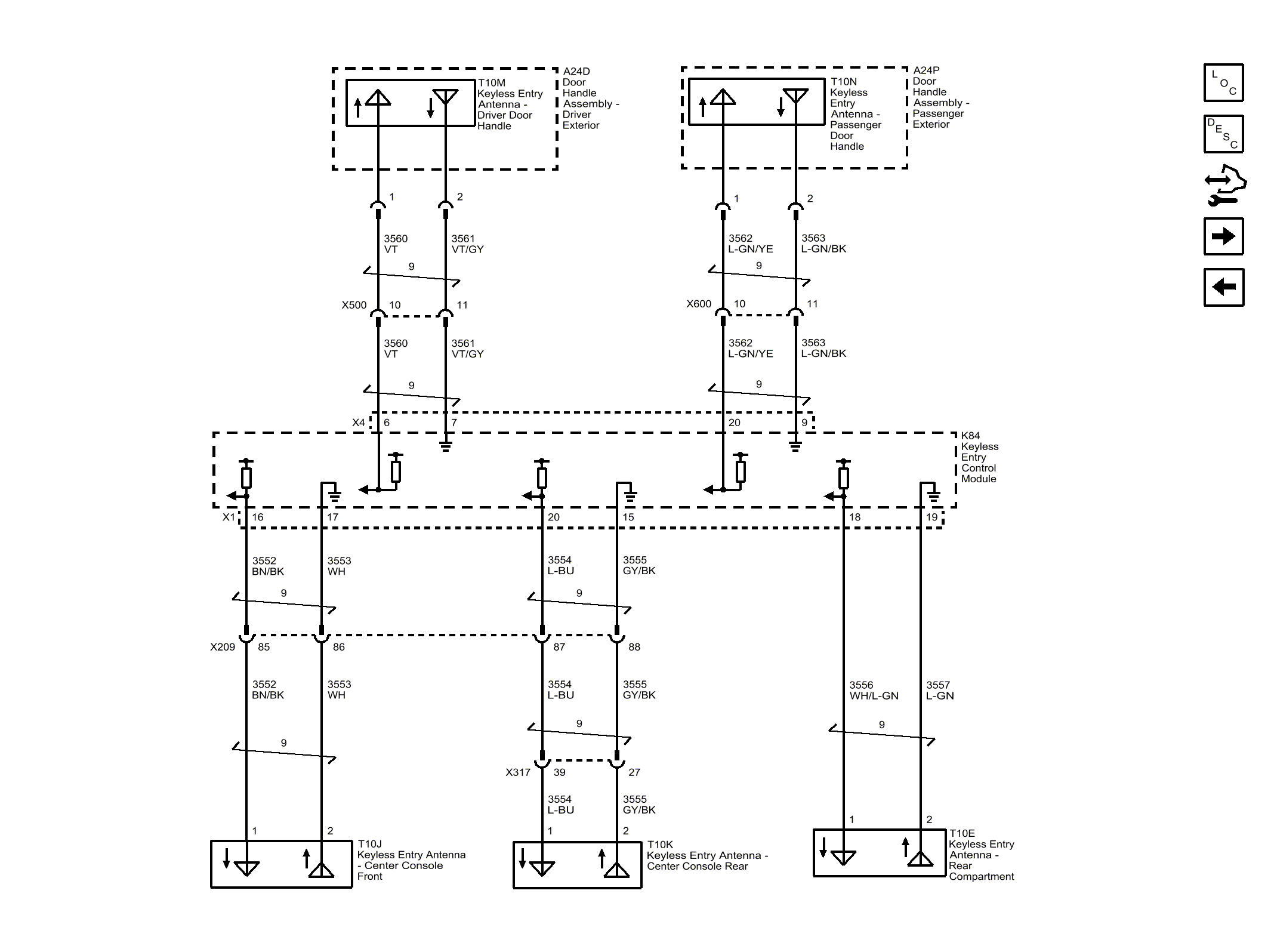

Fig 1: Passive Entry
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
