Fuel Injection Fuel Feed Hose Replacement

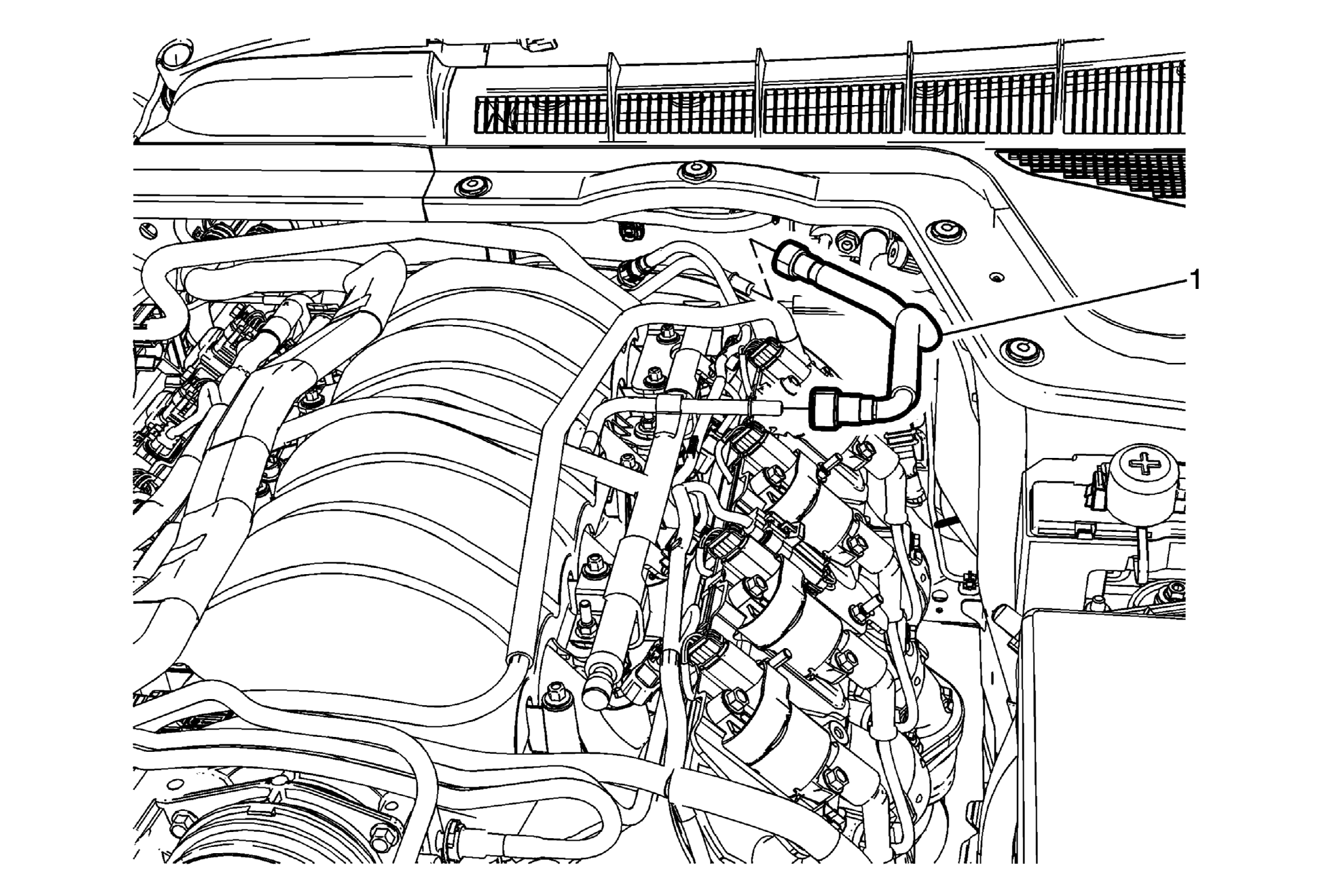

Fig 1: Fuel Injection Fuel Feed Hose
GM3238664Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
WARNING:

Refer to Safety Glasses Warning .

Preliminary Procedures

  1. Remove the engine cover. Refer to Engine Cover Replacement .
  2. Relieve the fuel pressure. Refer to Fuel Pressure Relief .
1 Fuel Injection Fuel Feed Hose
Procedure
Disconnect the quick connect fittings. Refer to Metal Collar Quick Connect Fitting Service .
