Ignition Lock Key Transmitter Antenna Bracket Replacement

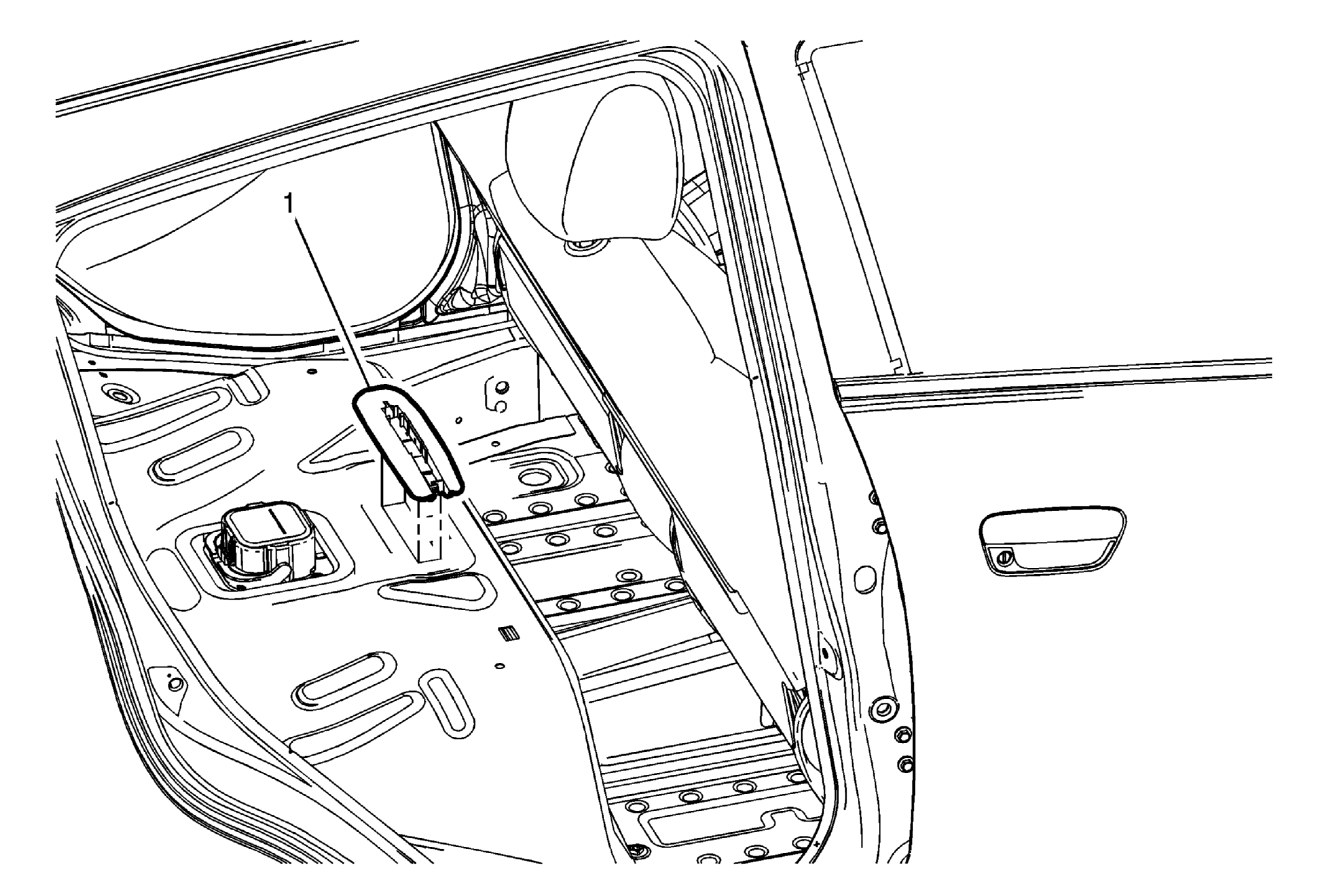

Fig 1: Ignition Lock Key Transmitter Antenna Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the ignition lock key transmitter antenna - rear compartment. Refer to Ignition Lock Key Transmitter Antenna Replacement - Rear Compartment .
1	Ignition Lock Key Transmitter Antenna Bracket Procedure  Gently remove bracket secured with adhesive tape.
