Keyless Entry Control Module Bracket Replacement

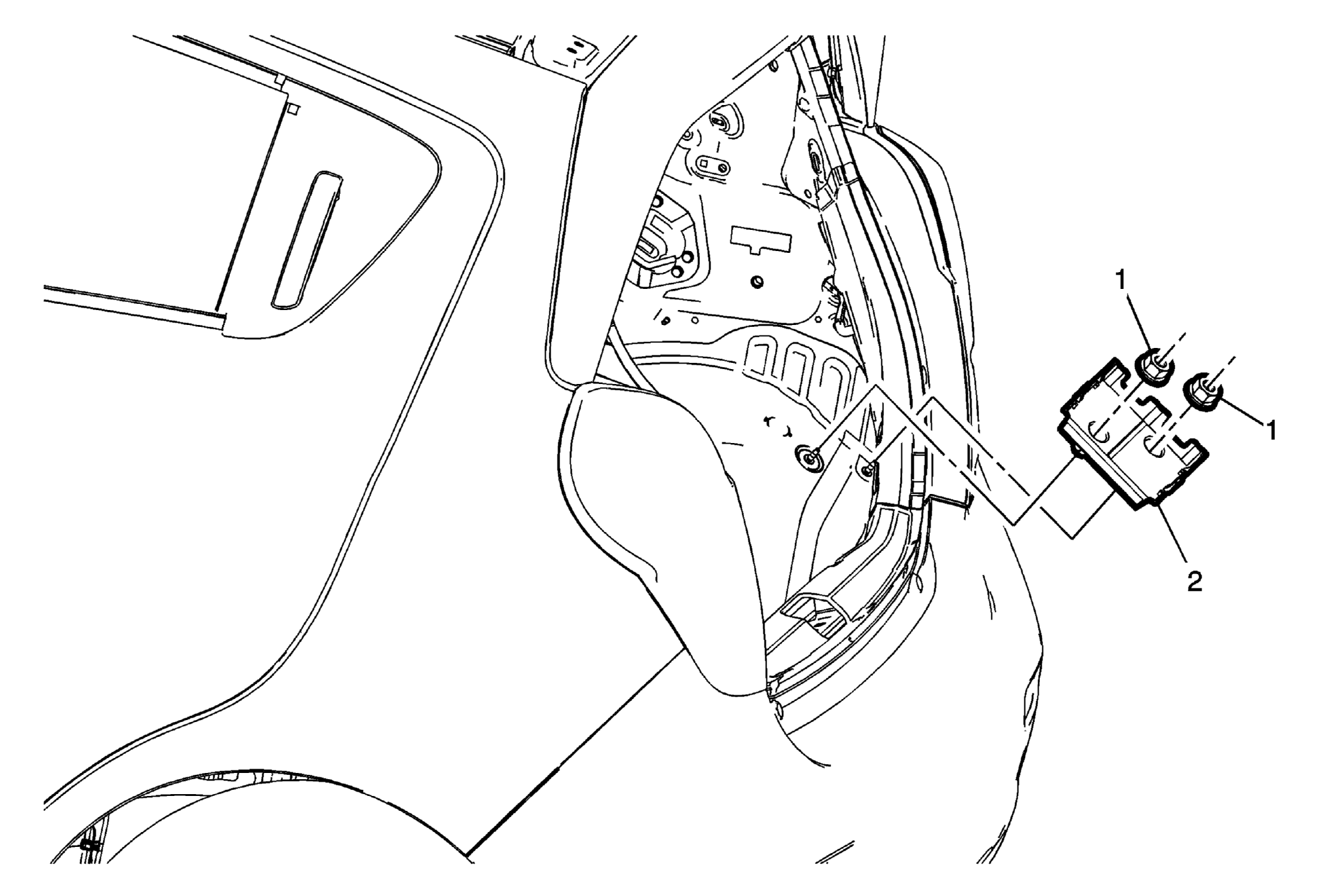

Fig 1: Keyless Entry Control Module Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the keyless entry control module. Refer to Keyless Entry Control Module Replacement .
1	Keyless Entry Control Module Bracket Fasteners (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten  9 N.m (80 lb in)
2	Keyless Entry Control Module Bracket Procedure  Transfer components, as necessary.
