Keyless Entry Control Module Replacement

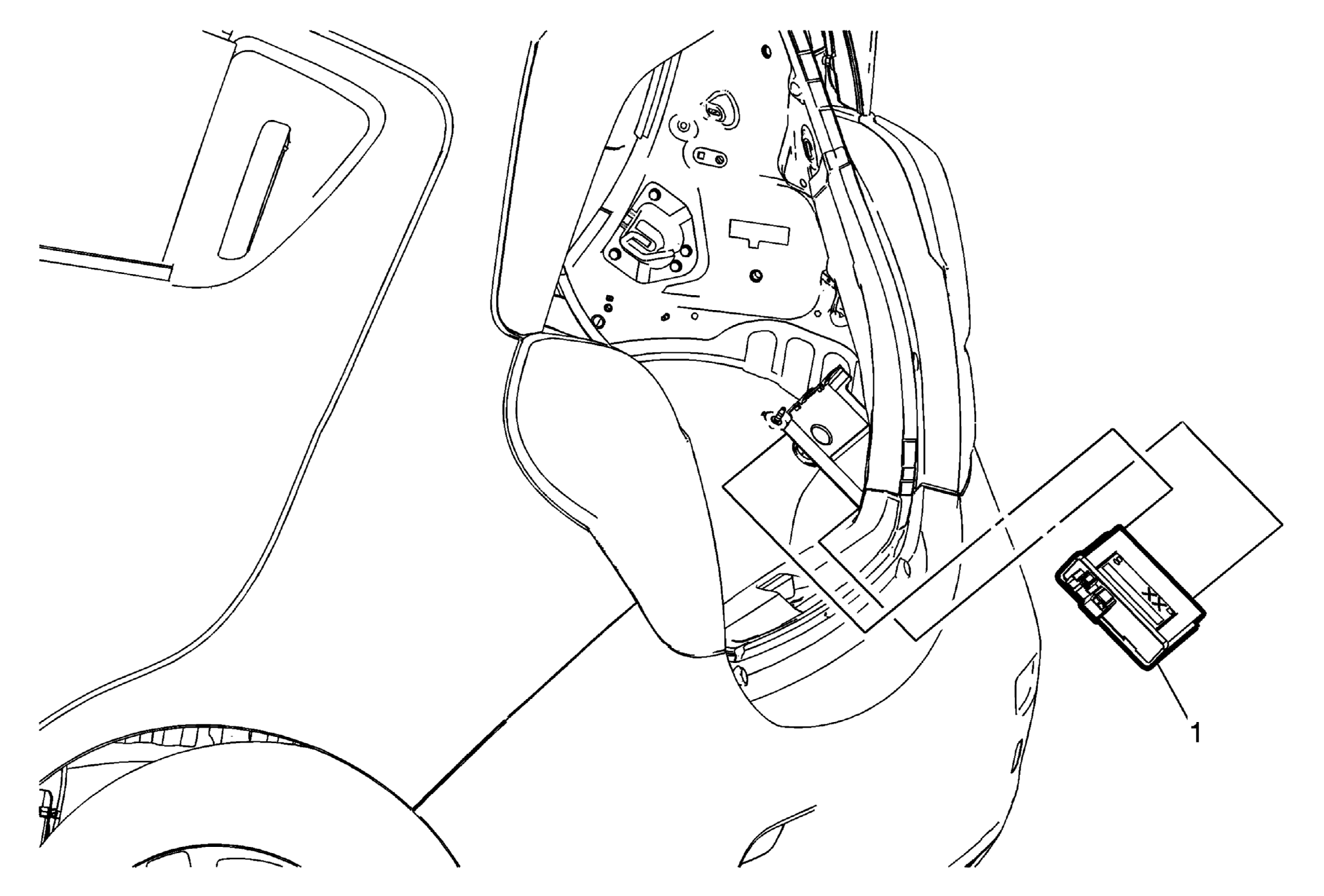

Fig 1: Keyless Entry Control Module
GM3213927Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the quarter lower rear trim panel. Refer to Quarter Lower Rear Trim Panel Replacement .
1 Keyless Entry Control Module

Procedure

  1. Disconnect the electrical connections.
  2. Slide module from bracket.
  3. Refer to Control Module References for programming and setup information.
