Charge Port Door Replacement

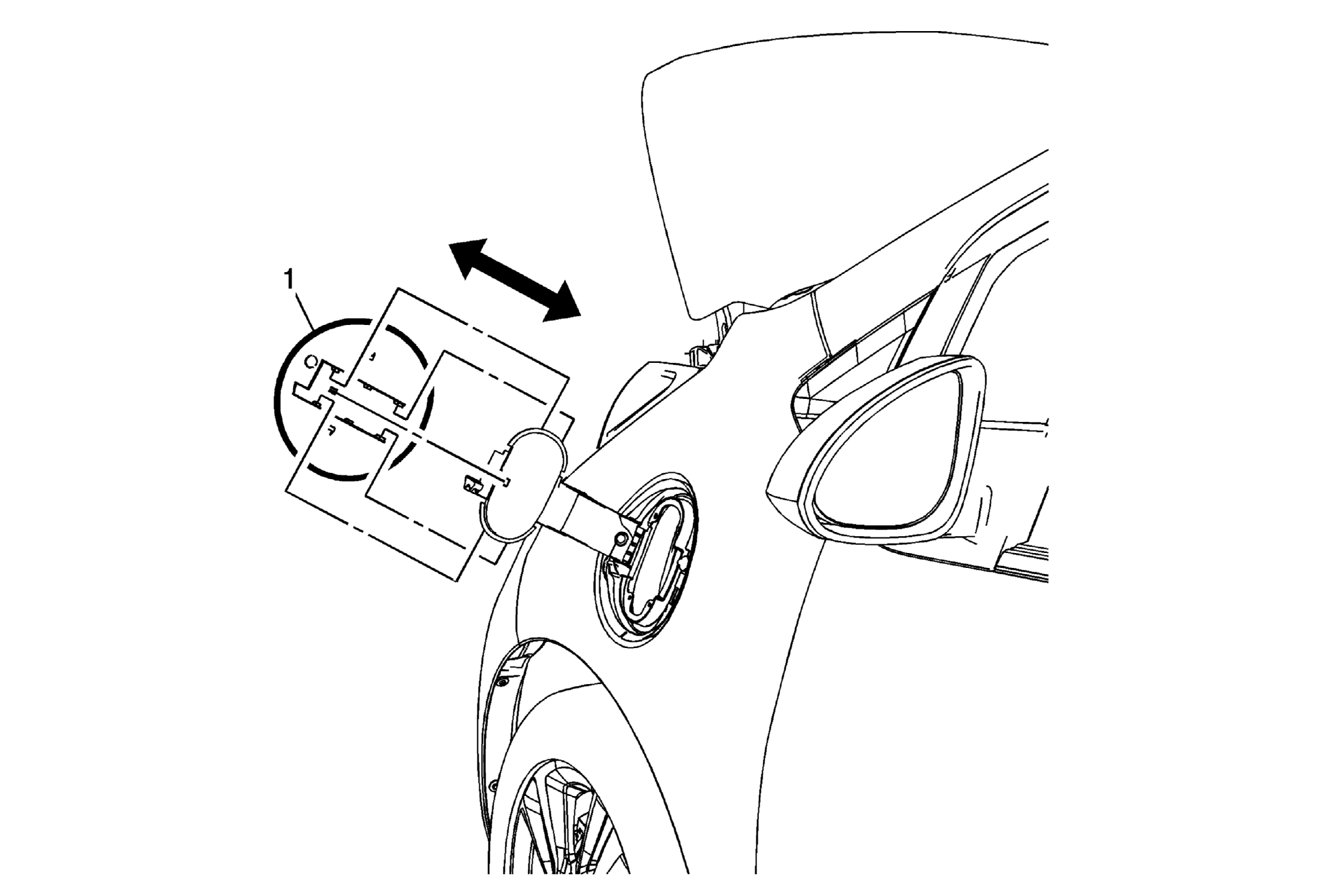

Fig 1: Charge Port Door
GM2916680Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Electrically release (if equiped) and open the charge port door.
  2. Disable the high voltage system. Refer to High Voltage Disabling .
1 Charge Port Door

Procedure

  1. Using a flat-bladed driver, lift slightly upward on the tab at the center of the hinge in order to release the door from the hinge assembly.
  2. Slide the door outward, away from the hinge and remove.
  3. Enable the high voltage system. Refer to High Voltage Enabling .
