Object Detection

WARNING: This page is about a different car, the 2015 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

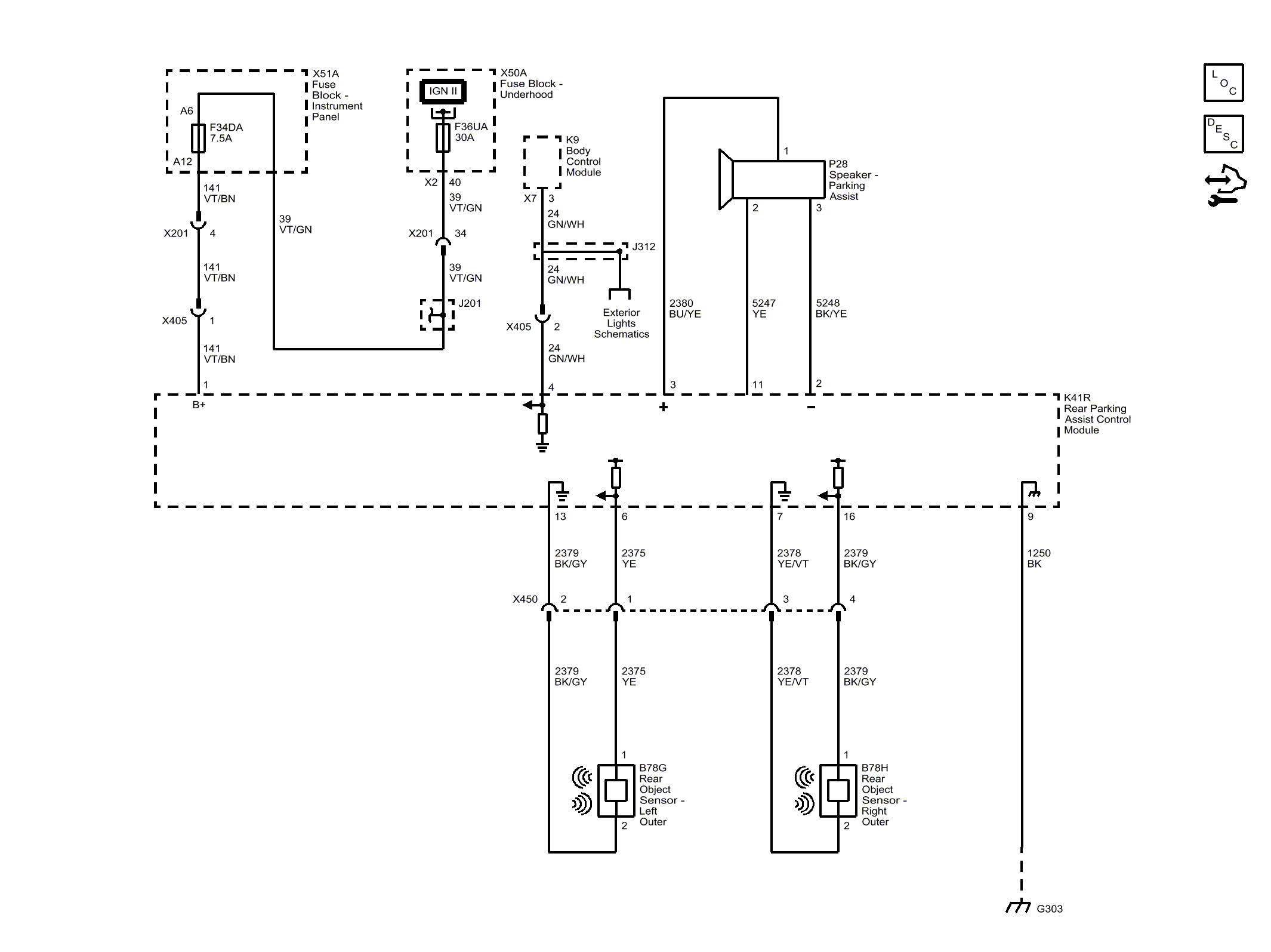

Fig 1: Object Detection
GM3680851Courtesy of GENERAL MOTORS COMPANY
