Keyless Entry Control Module Bracket Replacement

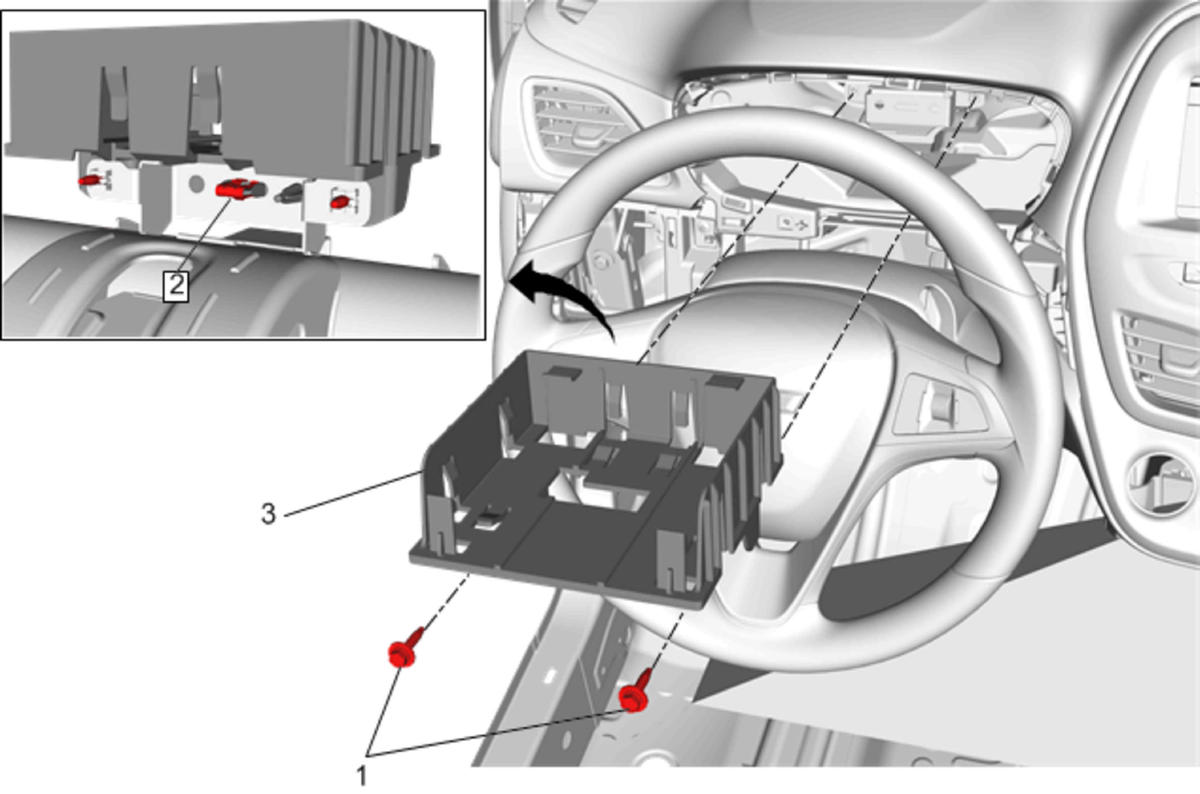

Fig 1: Keyless Entry Control Module Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the keyless entry control module. Refer to Keyless Entry Control Module Replacement .
1	Keyless Entry Control Module Bracket Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten  2.5 N.m (23 lb in)
2	Instrument Panel Clip
3	Keyless Entry Control Module Bracket
