Keyless Entry (XL8)

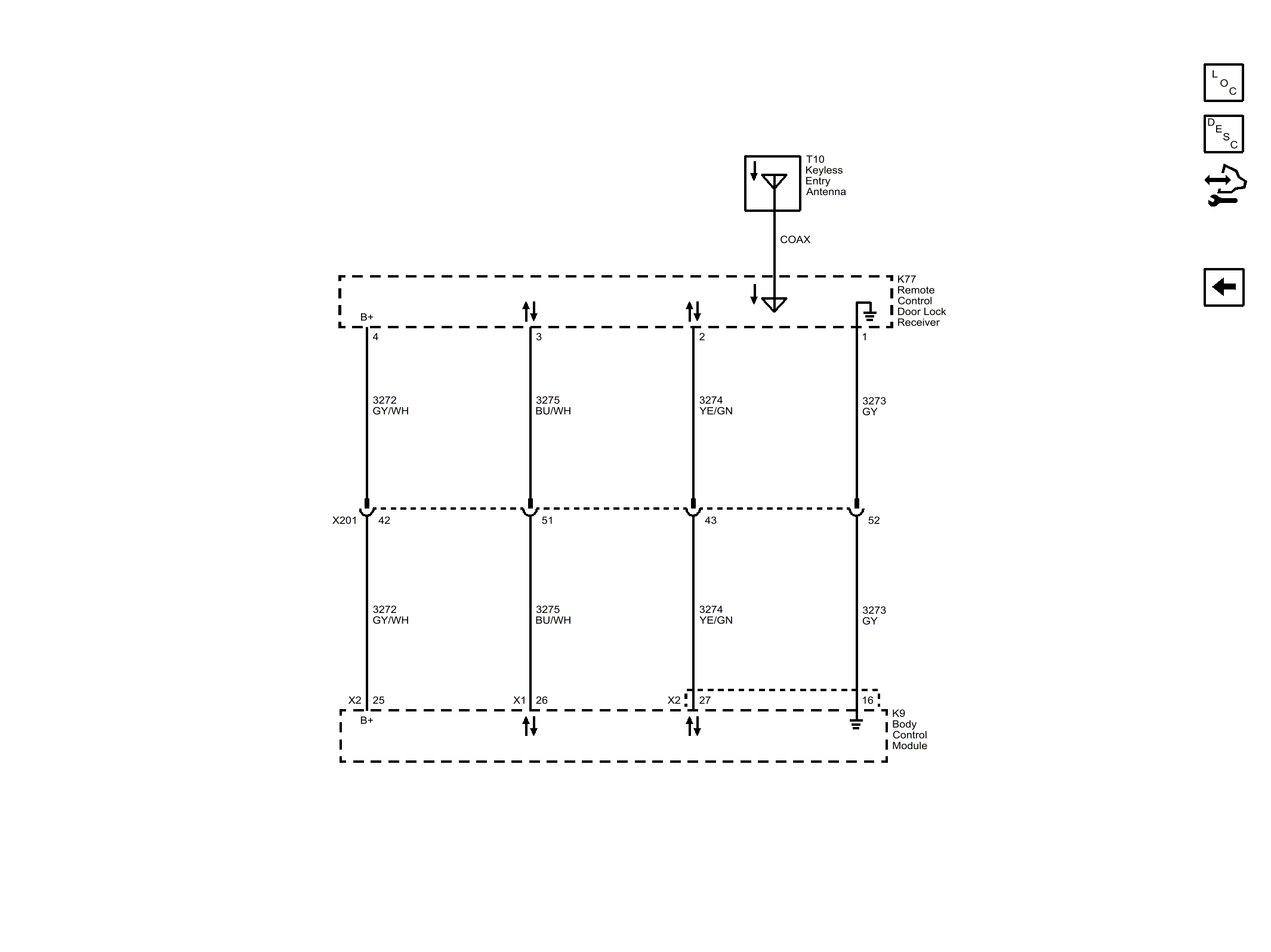

Fig 1: Keyless Entry (XL8)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
