Sunroof Module Assembly Replacement

Preliminary Procedures

1. Remove the sunroof window. Refer to Sunroof Window Replacement .
2. Remove the headliner. Refer to Headlining Trim Panel Replacement .
3. Disconnect the sunroof harness electrical connectors.
4. Disconnect the drain hoses from the sunroof frame. Do not remove the drain hoses from the vehicle, disconnect the drain hoses at all the corners of the sunroof frame spigot only. Refer to Sunroof Housing Front Drain Hose Replacement , and Sunroof Housing Rear Drain Hose Replacement .

Procedure

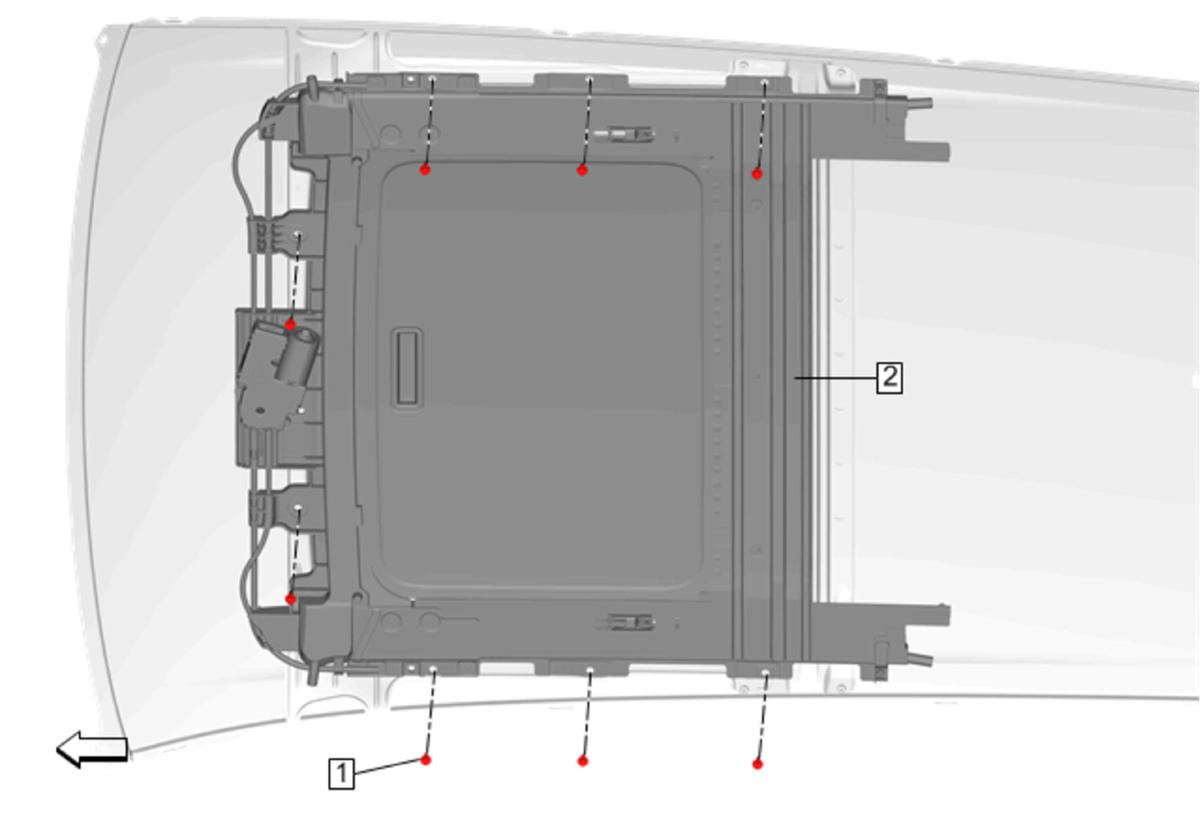

1. With an assistant, lower and remove the sunroof module assembly from the vehicle.
2. Place the sunroof assembly on a clean dry surface.
3. Transfer all necessary components to the new module assembly.

Procedure

1. Transfer all necessary components
2. Adjust the sunroof window. Refer to Sunroof Window Height and Opening Fit Adjustment
3. Verify the proper operation of the sunroof before securing the headliner.
4. Ensure the motor/actuator initialization/teach process has been done. Refer to Sunroof Motor/Actuator Initialization/Teach Process .
5. Water test vehicle before installing the trim to ensure No leaks.
