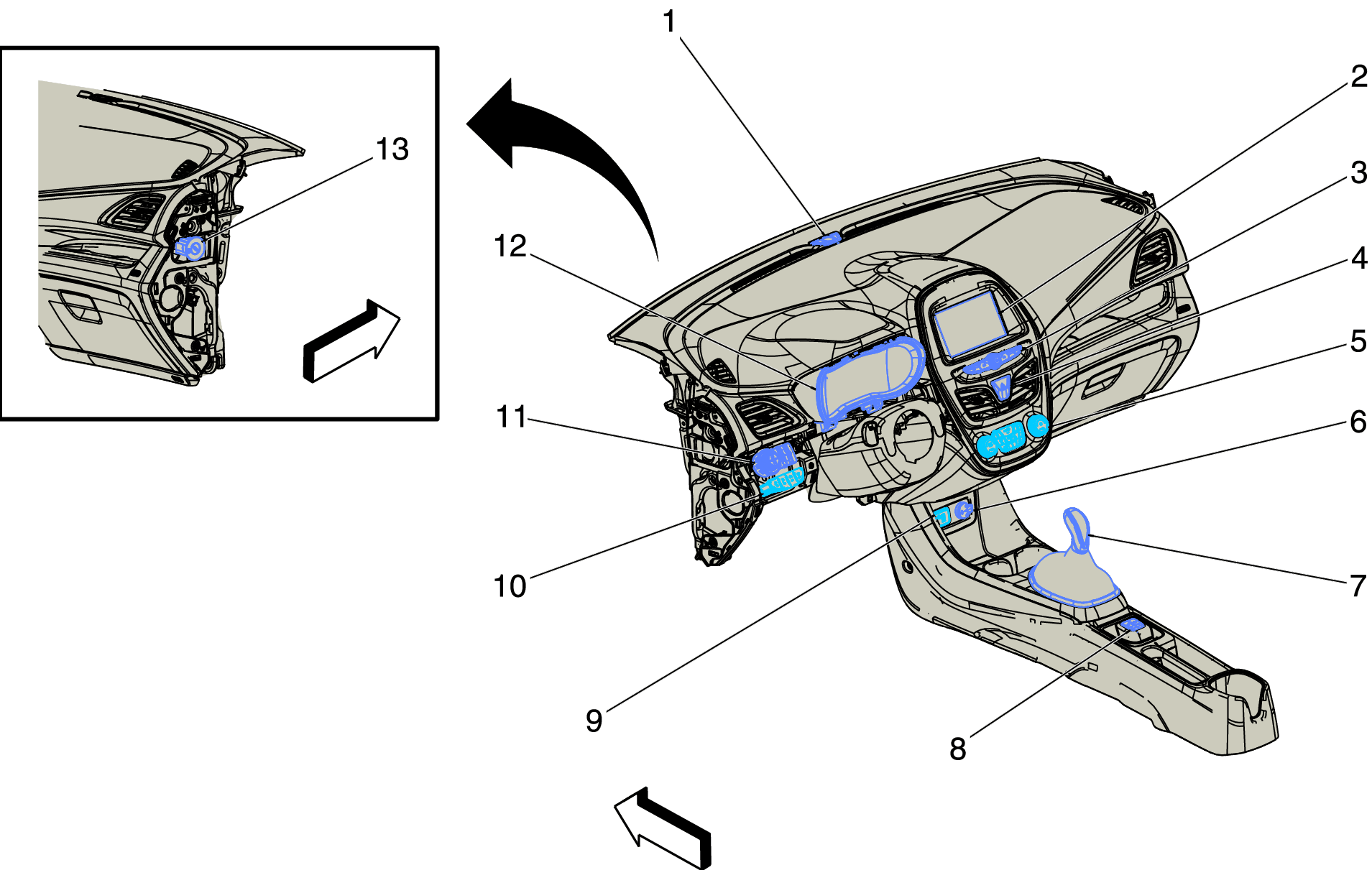

Instrument Panel Components (LHD)
Instrument Panel Components (LHD)
| Items |
|---|
| 1: B10B Ambient Light/Sunload Sensor B10B Ambient Light/Sunload Sensor |
| 2: P17 Info Display Module (IOB) P17 Info Display Module X1 IOBP17 Info Display Module X2 IOB |
| 3: A22 Radio Controls (IOB) A22 Radio Controls IOB |
| 4: S26 Hazard Warning Switch S26 Hazard Warning Switch - MBM |
| 5: A26 HVAC Controls (C68) A26 HVAC Controls |
| 6: E32 Cigarette Lighter Receptacle E32 Cigarette Lighter Receptacle UJA |
| 7: S3 Transmission Shift Lever (MFQ or MR8) S3 Transmission Shift Lever |
| 8: S32 Seat Heating Switch (KA1) S32 Seat Heating Switch KA1 |
| 9: X83 Auxiliary Audio Input X83 Auxiliary Audio Input X1 |
| 10: S48A Multifunction Switch - Instrument Panel S48A Multifunction Switch - Instrument Panel |
| 11: S30 Headlamp Switch S30 Headlamp Switch |
| 12: P16 Instrument Cluster P16 Instrument Cluster |
| 13: S40 Passenger Air Bag Disable Switch (C99) S40 Passenger Air Bag Disable Switch C99 |
