Parking Assist Control Module Replacement

WARNING: This page is about a different car, the 2015 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

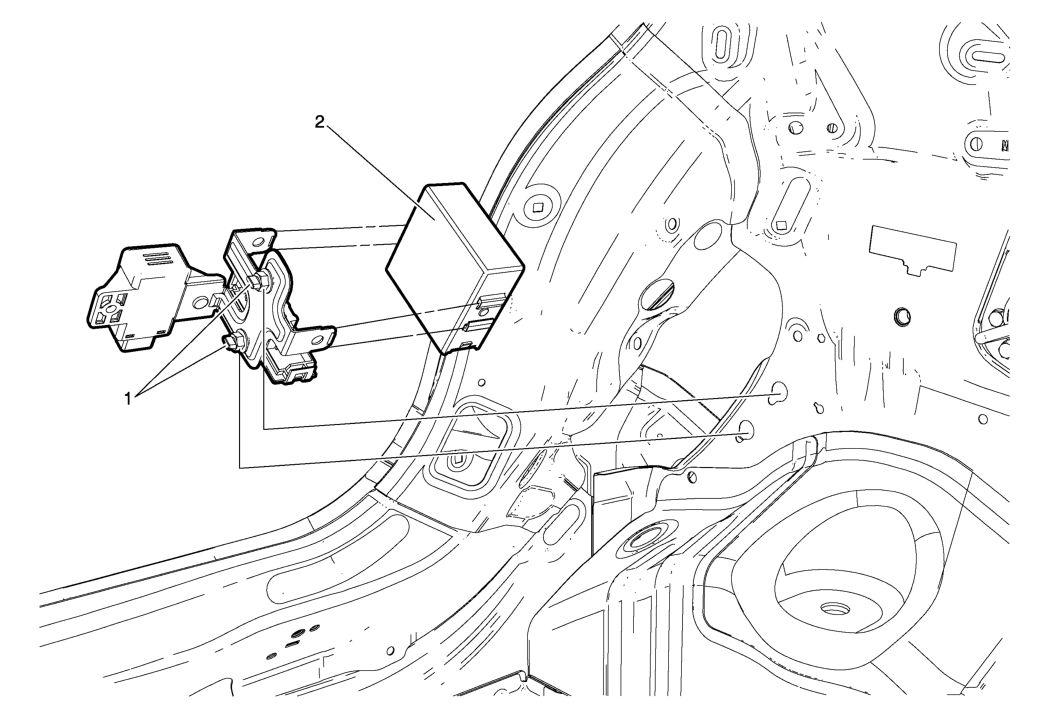

Fig 1: Rear Object Alarm Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear wheelhouse trim finish. Refer to Rear Wheelhouse Trim Finish Panel Replacement .
1	Rear Object Alarm Module Bolt CAUTION: Refer to Fastener Caution . Tighten 6 N.m (53 lb in)
2	Rear Object Alarm Module Procedure Loosen the bolts and remove the rear object alarm and module assembly. Disconnect the electrical connector. Remove the module from the bracket. TIP: The bolt is integral to the sensor assembly, DO NOT remove separately.

Callout

Component Name

Preliminary Procedure
Remove the rear wheelhouse trim finish. Refer to Rear Wheelhouse Trim Finish Panel Replacement .

Rear Object Alarm Module Bolt

CAUTION: Refer to Fastener Caution .

Tighten
6 N.m (53 lb in)

Rear Object Alarm Module

Procedure

Loosen the bolts and remove the rear object alarm and module assembly.
Disconnect the electrical connector.
Remove the module from the bracket.

TIP: The bolt is integral to the sensor assembly, DO NOT remove separately.
