Rear Object Alarm Replacement

WARNING: This page is about a different car, the 2015 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

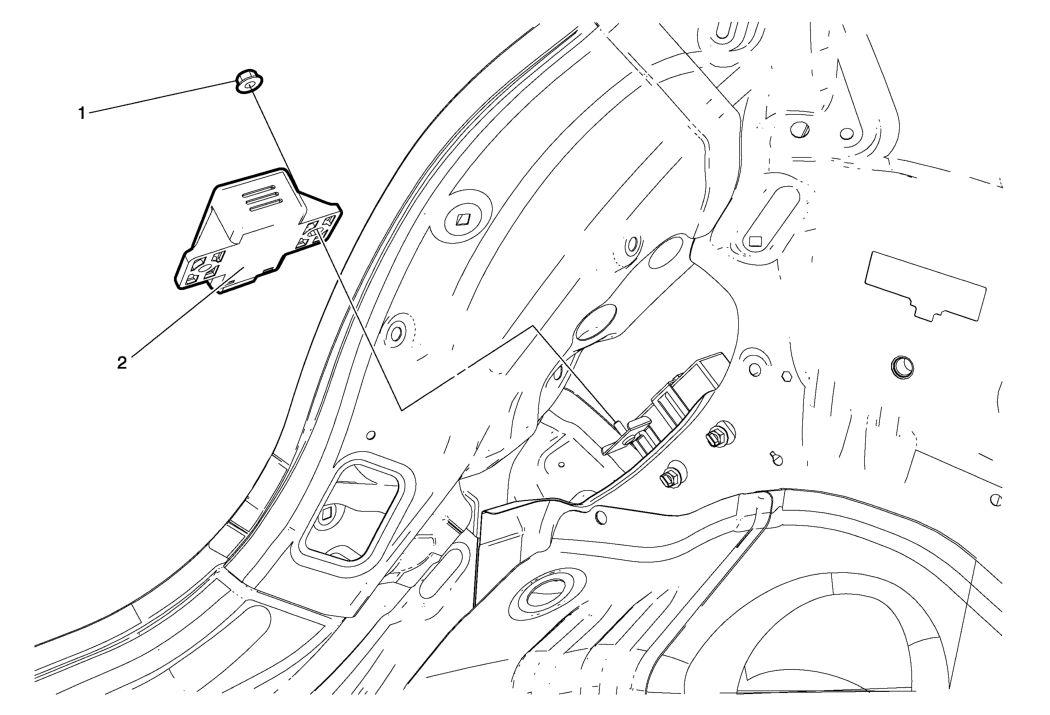

Fig 1: Rear Object Alarm

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear wheelhouse trim finish. Refer to Rear Wheelhouse Trim Finish Panel Replacement .
1	Rear Object Alarm Nut CAUTION: Refer to Fastener Caution . Tighten 4.5 N.m (40 lb in)
2	Rear Object Alarm Procedure Disconnect the electrical connector. Remove the rear object alarm.

Callout

Component Name

Preliminary Procedure
Remove the rear wheelhouse trim finish. Refer to Rear Wheelhouse Trim Finish Panel Replacement .

Rear Object Alarm Nut

CAUTION: Refer to Fastener Caution .

Tighten
4.5 N.m (40 lb in)

Rear Object Alarm

Procedure

Disconnect the electrical connector.
Remove the rear object alarm.
