Rearview Camera Image Display Module Replacement

WARNING: This page is about a different car, the 2015 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

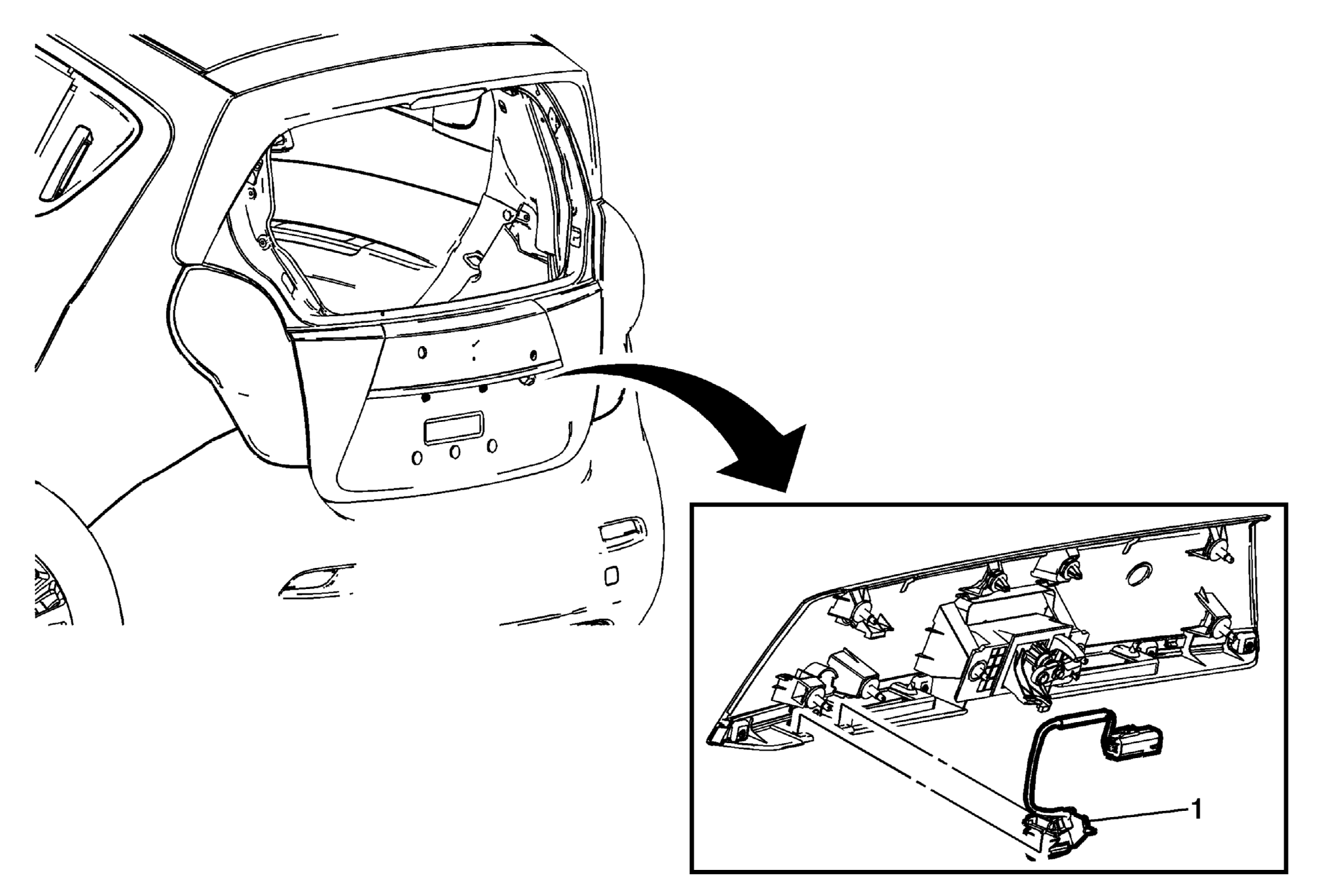

Fig 1: Rearview Camera Image Display Module
GM3222705Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the liftgate outside handle. Refer to Liftgate Outside Handle Replacement .
1 Rearview Camera Image Display Module

Procedure

  1. Disconnect the electrical connector.
  2. Depress the clip fingers and push outward to remove the rearview camera from the applique.
