Installation Procedure

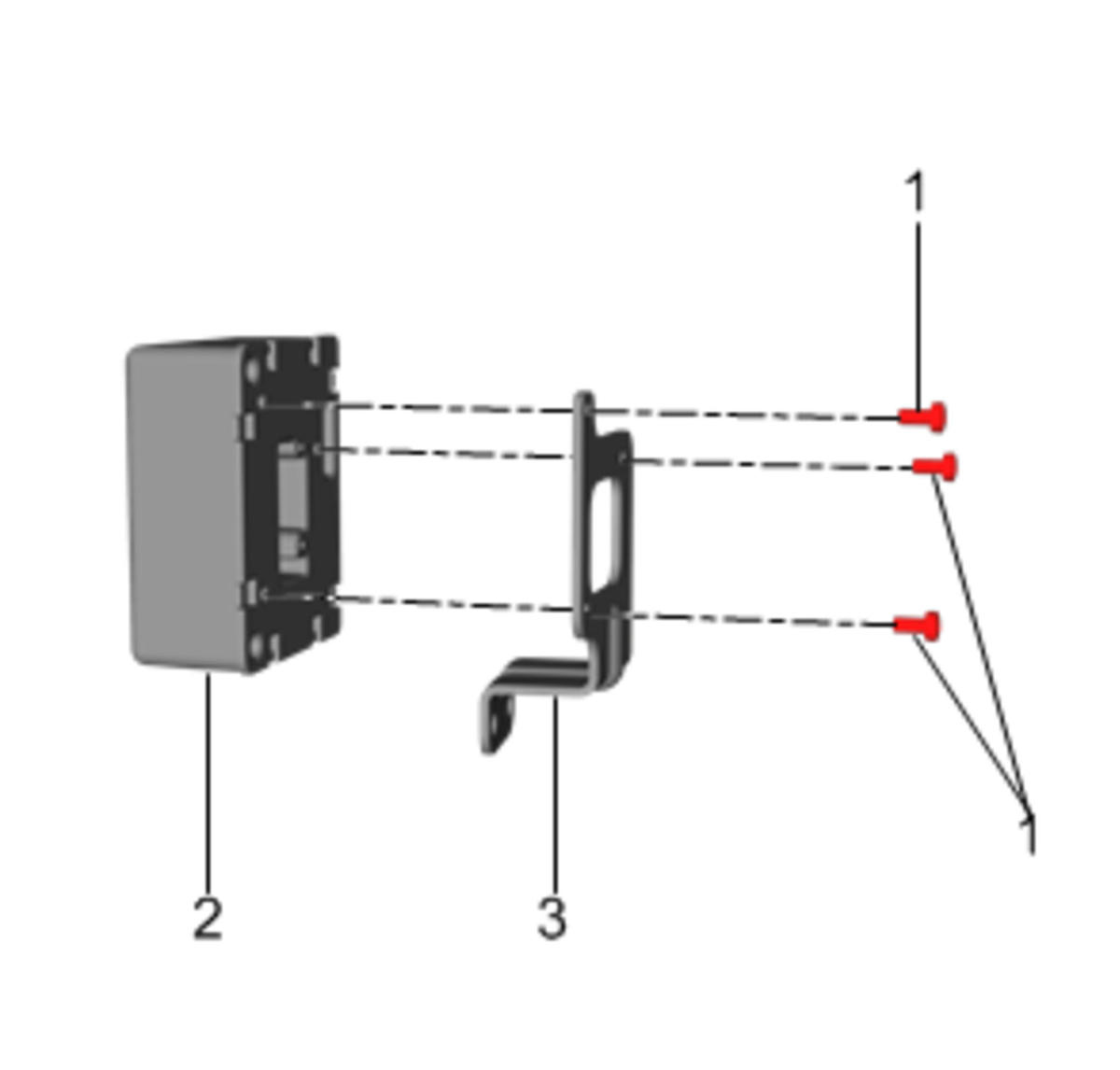

    Fig 1: Electronic Power Steering Motor Control Module, Bracket And Bolts
    GM4024320Courtesy of GENERAL MOTORS COMPANY
  1. Install the electronic power steering motor control module (2) to the electronic power steering motor control module bracket (3).
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the electronic power steering motor control module mounting bolts (1) and tighten to 3 N.m (27 lb in).
  3. Install the electronic power steering motor control module and bracket assembly to the vehicle.

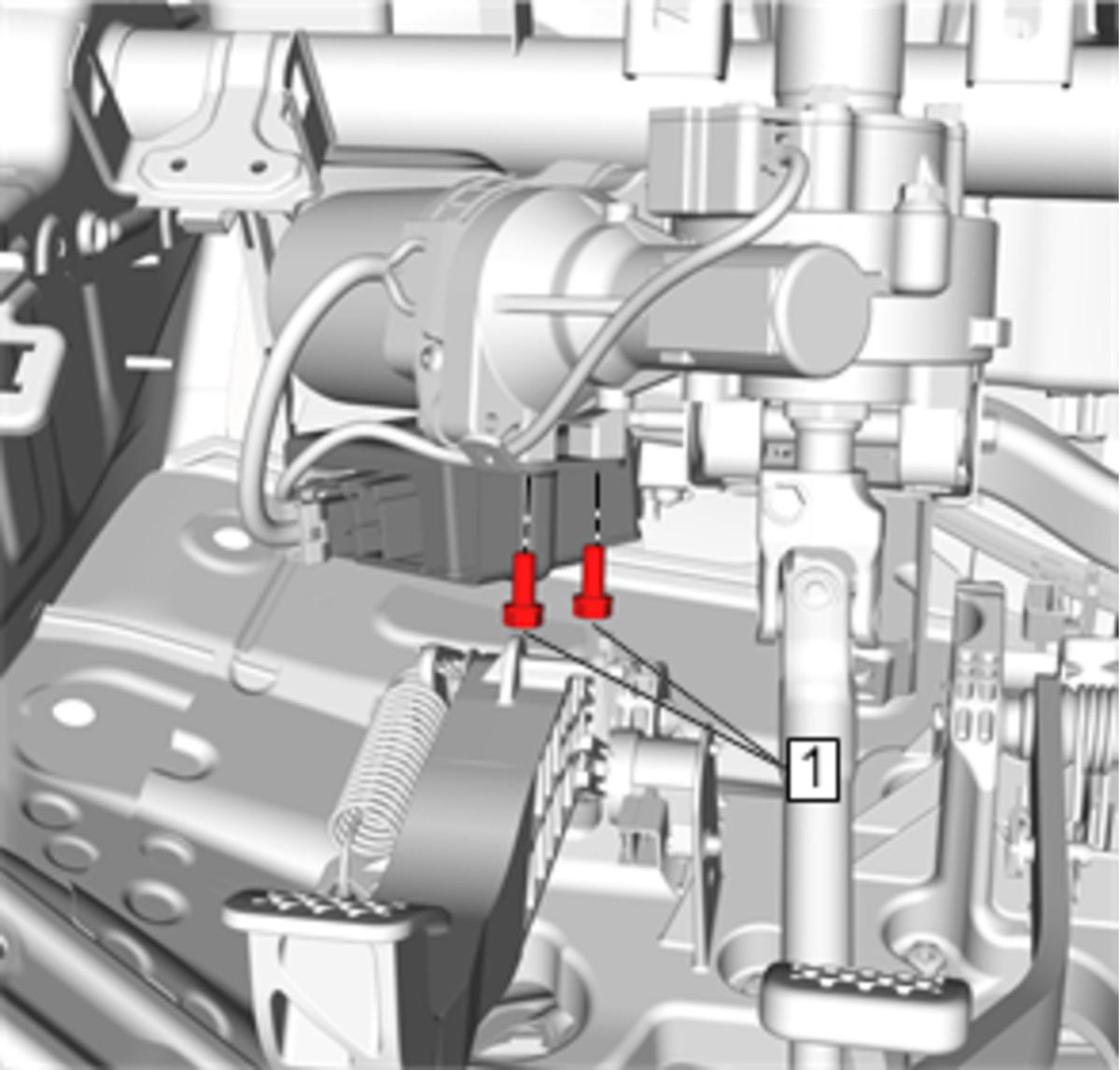

    4. Fig 2: Electronic Power Steering Motor Control Module Bracket Bolts
    GM4024319Courtesy of GENERAL MOTORS COMPANY
  4. Install the electronic power steering motor control module bracket bolts (1) and tighten to 18 N.m (13 lb ft).
  5. Connect the electrical connector to the electronic power steering motor control module.
  6. Install the I/P knee bolster. Refer to Instrument Panel Knee Bolster Replacement .
  7. Install the steering column lower trim cover. Refer to Steering Column Lower Trim Cover Replacement .
  8. Install the steering column upper trim cover. Refer to Steering Column Upper Trim Cover Replacement .
  9. Program the electronic power steering control module. Refer to Power Steering Control Module Programming and Setup .
  10. Calibrate the steering angle sensor. Refer to Steering Wheel Angle Sensor Centering .
