Side Object Sensing Alert Module Replacement

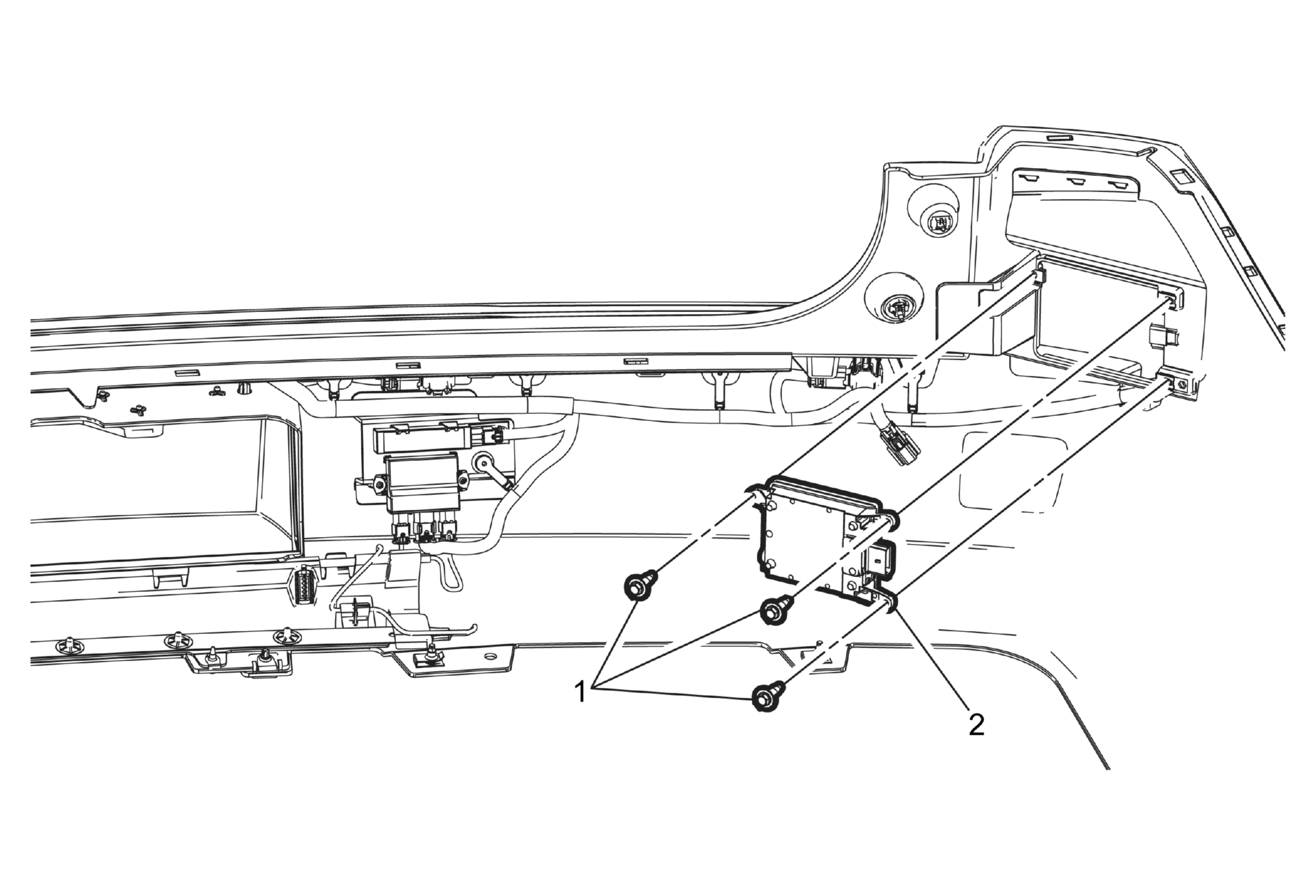

Fig 1: Side Object Sensing Alert Module
GM3637189Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedure

  1. Raise the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. If replacing the right side object sensing alert module, unclip and reposition the object sensor wiring harness.
1 Side Object Sensing Alert Module Fasteners (Qty: 3)
CAUTION:

Refer to Fastener Caution .


Tighten
2.5 N.m (22 lb in)
2 Side Object Sensing Alert Module

Procedure

  1. Disconnect the electrical connector.
  2. For programming and set up, refer to Control Module References
