Video Processing Module Replacement

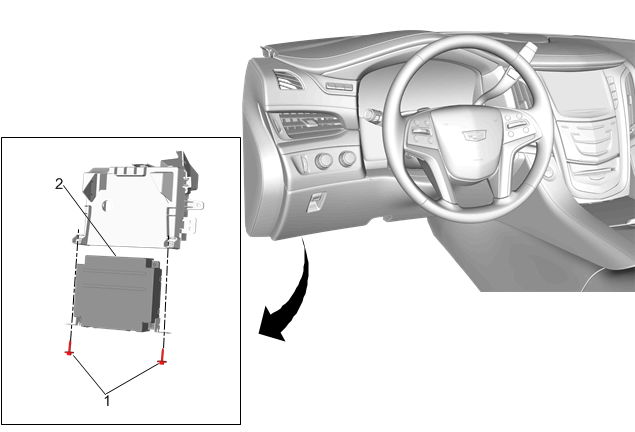

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the body control module bracket. Refer to Body Control Module Bracket Replacement . |
|
| 1 | Video Processing Control Module Fastener (Qty: 2)
CAUTION:
Refer to Fastener Caution . Tighten 6 N.m (53 lb in) |
| 2 | Video Processing Control Module Procedure Refer to Control Module References for programming and set up, if required. |
