Body Control Module Bracket Replacement
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 GMC Yukon XL, 2015 GMC Yukon, 2015 Chevrolet Tahoe, 2015 Chevrolet Suburban, and 2015 Cadillac Escalade ESV. However, it is still accessible from the selected car via links, so may be relevant.

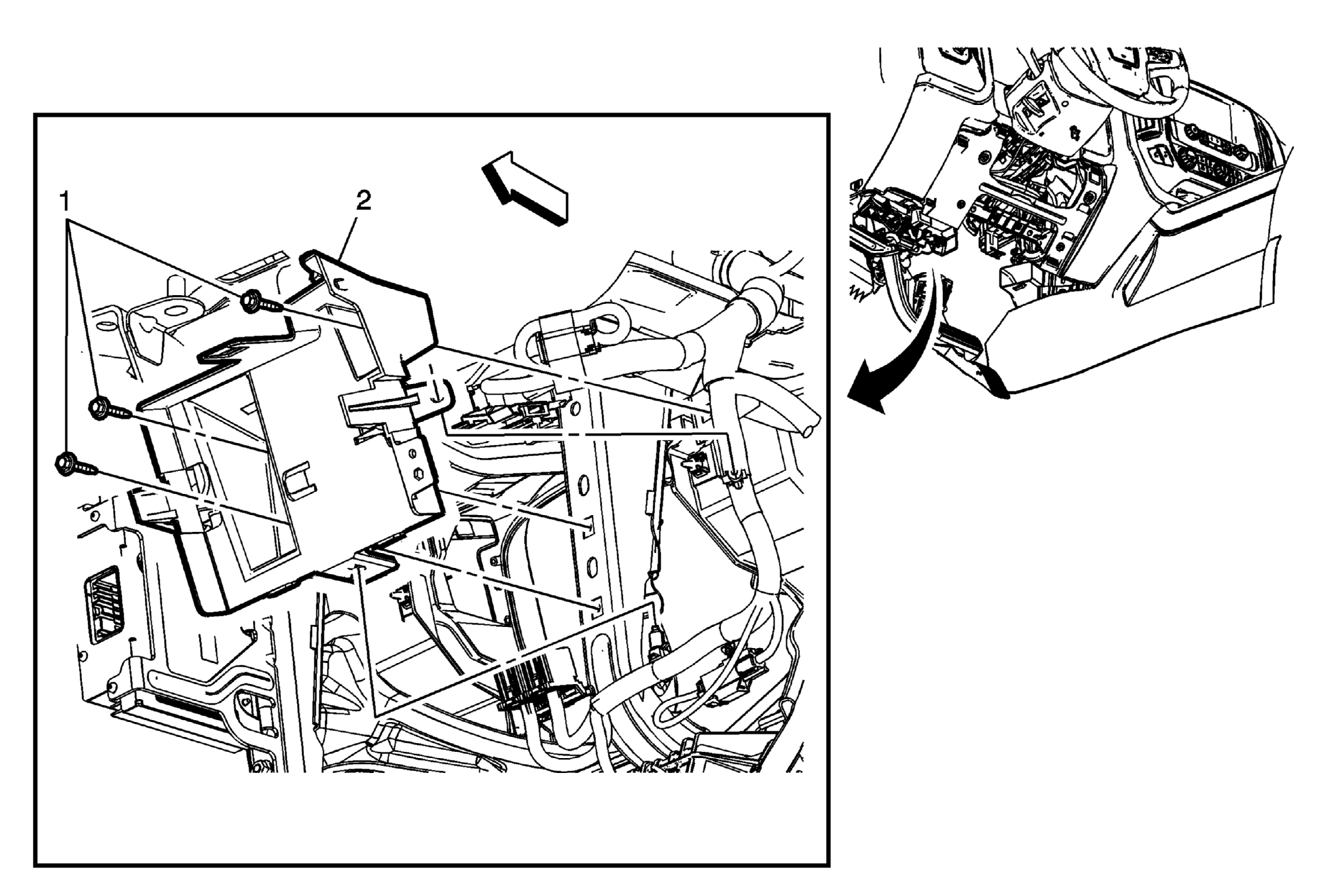

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the body control module. Refer to Body Control Module Replacement . |
|
| 1 | Body Control Module Bracket Fasteners (Qty: 3)
CAUTION:
Refer to Fastener Caution . Tighten 2 N.m (18 lb in) |
| 2 | Body Control Module Bracket Procedure Release the instrument panel harness retainer, disconnect and unclip the airbag wiring harness connector from the plastic retainer on the body control module bracket. |
