Active Safety Control Module Replacement (Cadillac)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 GMC Yukon XL, 2015 GMC Yukon, 2015 Chevrolet Tahoe, 2015 Chevrolet Suburban, and 2015 Cadillac Escalade ESV. However, it is still accessible from the selected car via links, so may be relevant.

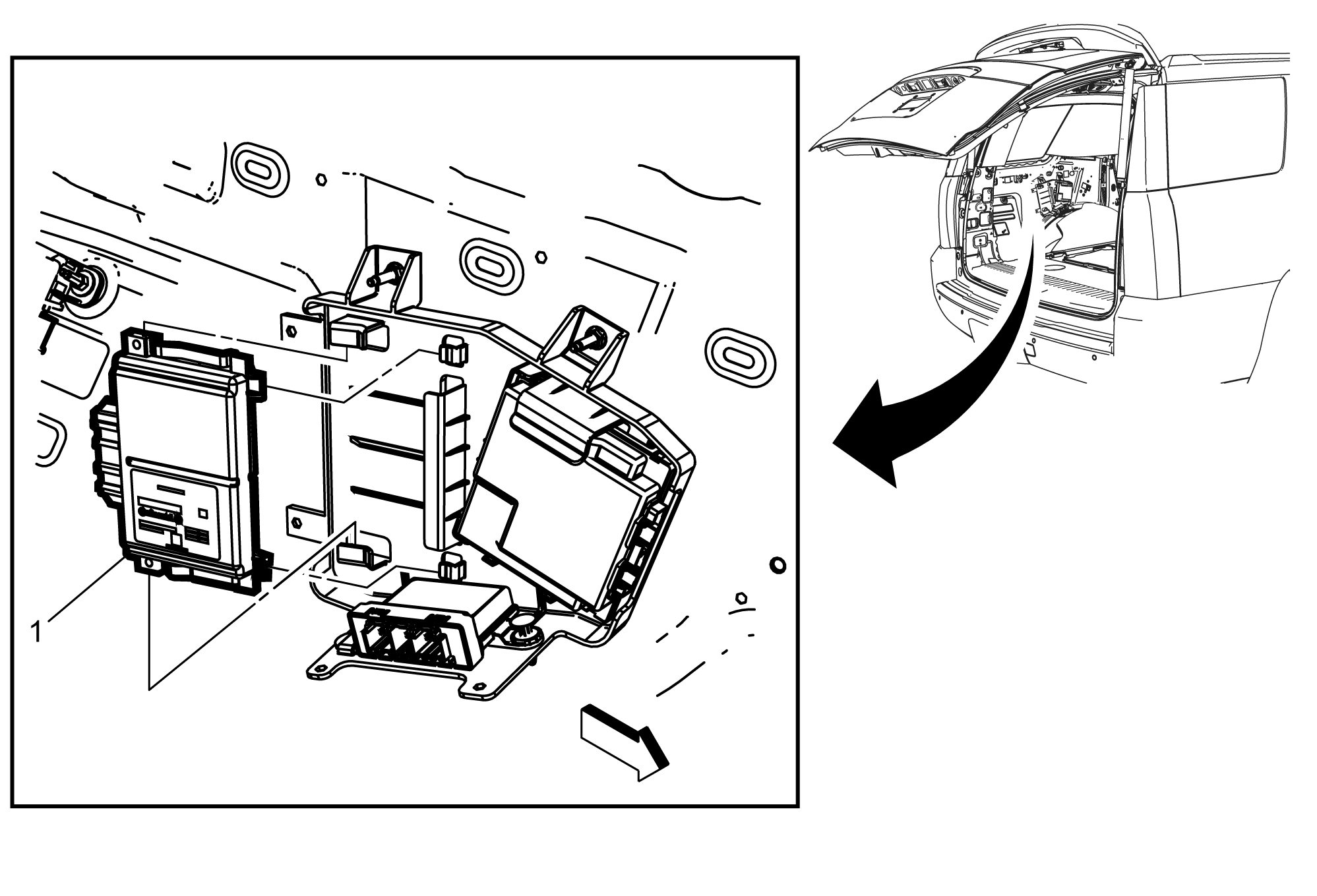

Fig 1: Active Safety Control Module (Cadillac)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the left hand quarter lower rear trim door from the left quarter lower rear trim panel. Remove the body side rear trim panel stowage compartment tray from the left quarter lower rear trim panel, if vehicle is a long wheelbase. Remove the body side rear trim panel cup holder from the quarter lower rear trim panel, if the vehicle is a short wheelbase.
1	Active Safety Control Module Procedure Disconnect the electrical connectors. Release module from retaining tabs on bracket. For programming and set up information, refer to Control Module References .

Callout

Component Name

Preliminary Procedure

Remove the left hand quarter lower rear trim door from the left quarter lower rear trim panel.
Remove the body side rear trim panel stowage compartment tray from the left quarter lower rear trim panel, if vehicle is a long wheelbase.
Remove the body side rear trim panel cup holder from the quarter lower rear trim panel, if the vehicle is a short wheelbase.

Active Safety Control Module

Procedure

Disconnect the electrical connectors.
Release module from retaining tabs on bracket.
For programming and set up information, refer to Control Module References .
