Rearview Driver Information Camera Replacement

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 GMC Yukon XL, 2015 GMC Yukon, 2015 Chevrolet Tahoe, 2015 Chevrolet Suburban, and 2015 Cadillac Escalade ESV. However, it is still accessible from the selected car via links, so may be relevant.

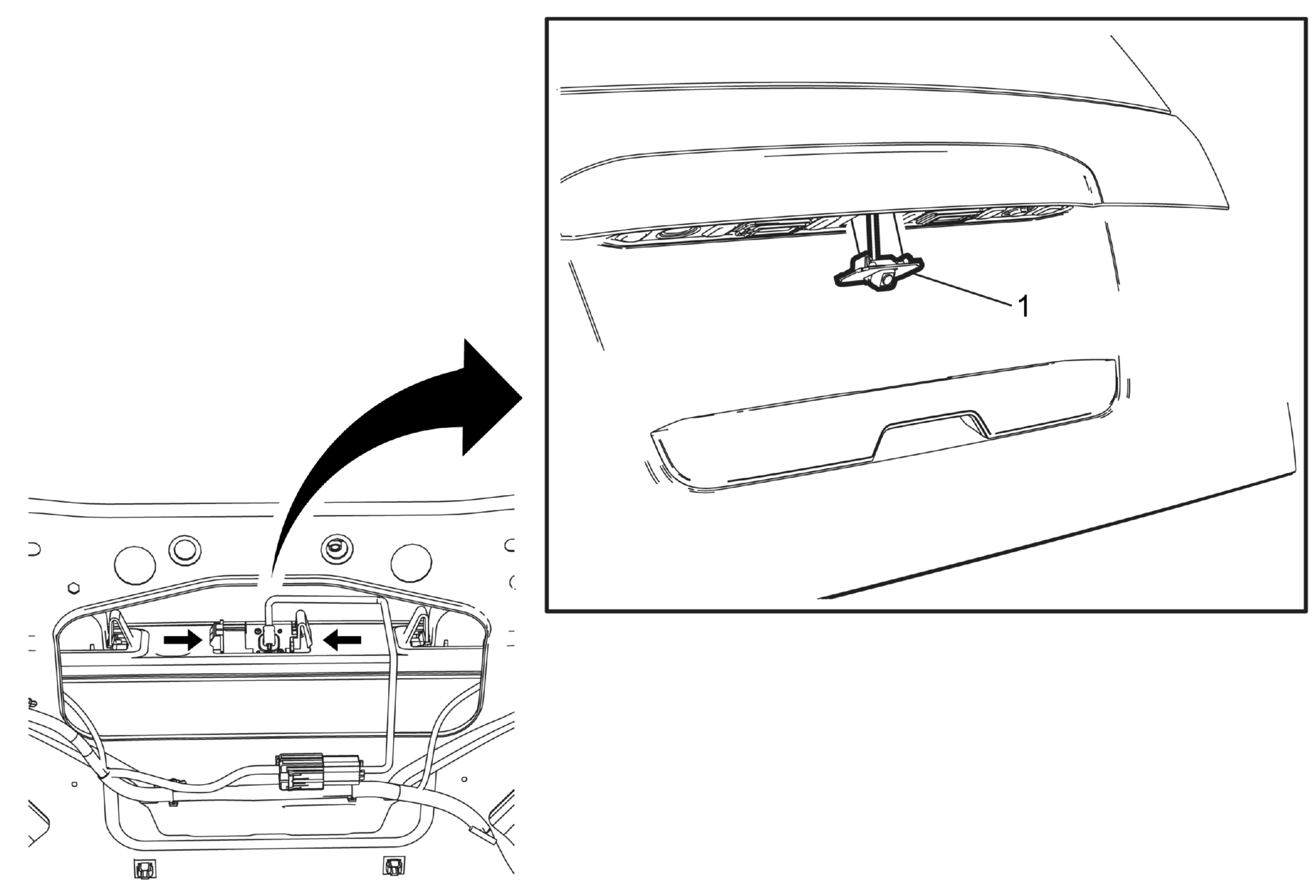

Fig 1: Rearview Driver Information Camera

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the liftgate trim finish panel. Refer to Liftgate Trim Finish Panel Replacement .
1	Rearview Driver Information Camera Procedure Disconnect the electrical connector. Depress the clip fingers and push outward to remove the camera from the panel. Calibrate the driver information camera. Refer to Video Processing Control Module Calibration .

Callout

Component Name

Preliminary Procedure
Remove the liftgate trim finish panel. Refer to Liftgate Trim Finish Panel Replacement .

Rearview Driver Information Camera

Procedure

Disconnect the electrical connector.
Depress the clip fingers and push outward to remove the camera from the panel.
Calibrate the driver information camera. Refer to Video Processing Control Module Calibration .
