Shift Lock Control (Encore)

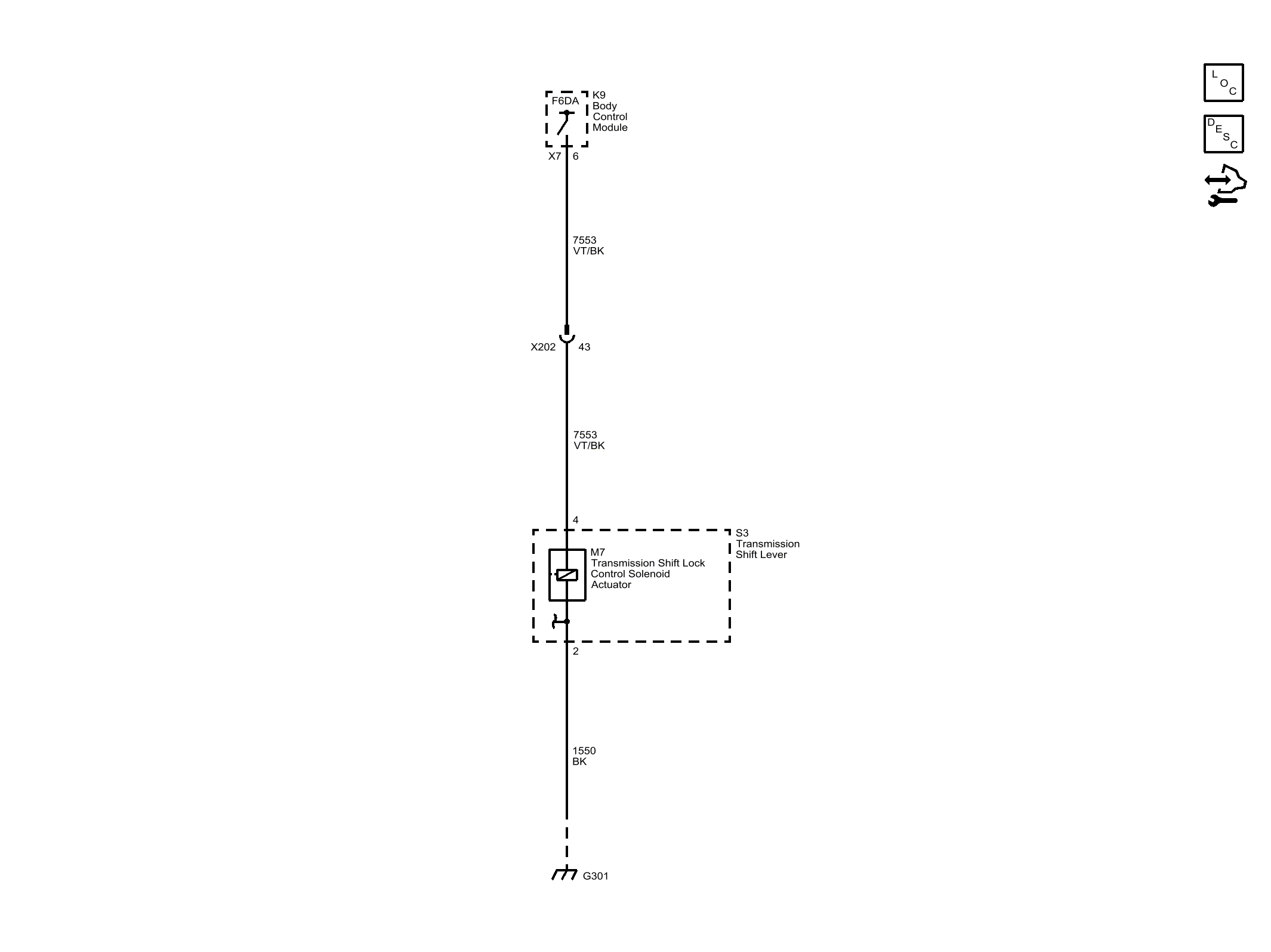

Fig 1: Shift Lock Control (Encore)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
