Low Frequency Console Antenna Replacement

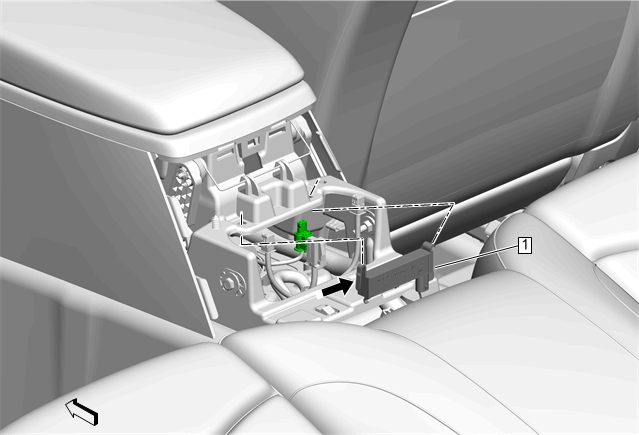

Fig 1: Low Frequency Console Antenna

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove Front Floor Console Rear Cup Holder. Refer to Front Floor Console Rear Cup Holder Replacement
1	Low Frequency Console Antenna Procedure Release the plastic retaining tabs. Disconnect the electrical connector.

Callout

Component Name

Preliminary Procedure
Remove Front Floor Console Rear Cup Holder. Refer to Front Floor Console Rear Cup Holder Replacement

Low Frequency Console Antenna

Procedure
