Electronic Brake Control Module Replacement

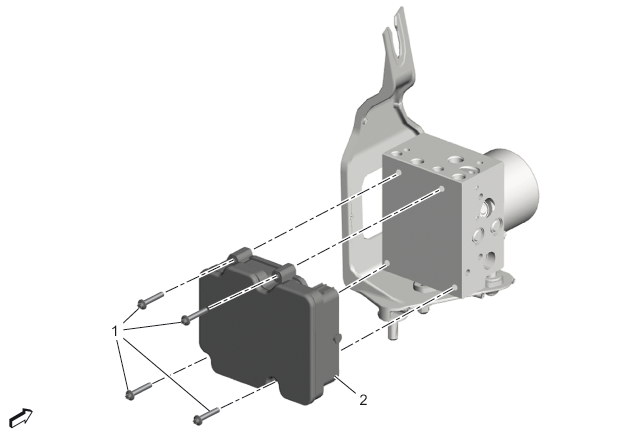

Fig 1: Electronic Brake Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Brake Fluid Irritant Warning CAUTION: Refer to Brake Fluid Effects on Paint and Electrical Components Caution CAUTION: Always connect or disconnect the wiring harness connector from the EBCM/EBTCM with the ignition switch in the OFF position. Failure to observe this precaution could result in damage to the EBCM/EBTCM. Preliminary Procedure Refer to Electronic Brake Control Module with Brake Pressure Modulator Valve Replacement
1	Electronic Brake Control Module Fastener (Qty: 4) CAUTION: Refer to Fastener Caution Tighten 3 N.m (27 lb in)
2	Electronic Brake Control Module Procedure Refer to Electronic Brake Control Module Programming and Setup Refer to Hydraulic Brake System Bleeding

Callout

Component Name

WARNING:

Refer to Brake Fluid Irritant Warning

CAUTION:

Refer to Brake Fluid Effects on Paint and Electrical Components Caution

CAUTION:

Always connect or disconnect the wiring harness connector from the EBCM/EBTCM with the ignition switch in the OFF position. Failure to observe this precaution could result in damage to the EBCM/EBTCM.

Preliminary Procedure Refer to Electronic Brake Control Module with Brake Pressure Modulator Valve Replacement

Electronic Brake Control Module Fastener (Qty: 4)

CAUTION:

Refer to Fastener Caution

Tighten
3 N.m (27 lb in)

Electronic Brake Control Module

Procedure

Refer to Electronic Brake Control Module Programming and Setup
Refer to Hydraulic Brake System Bleeding
