Pedestrian Sound Alert Module Replacement

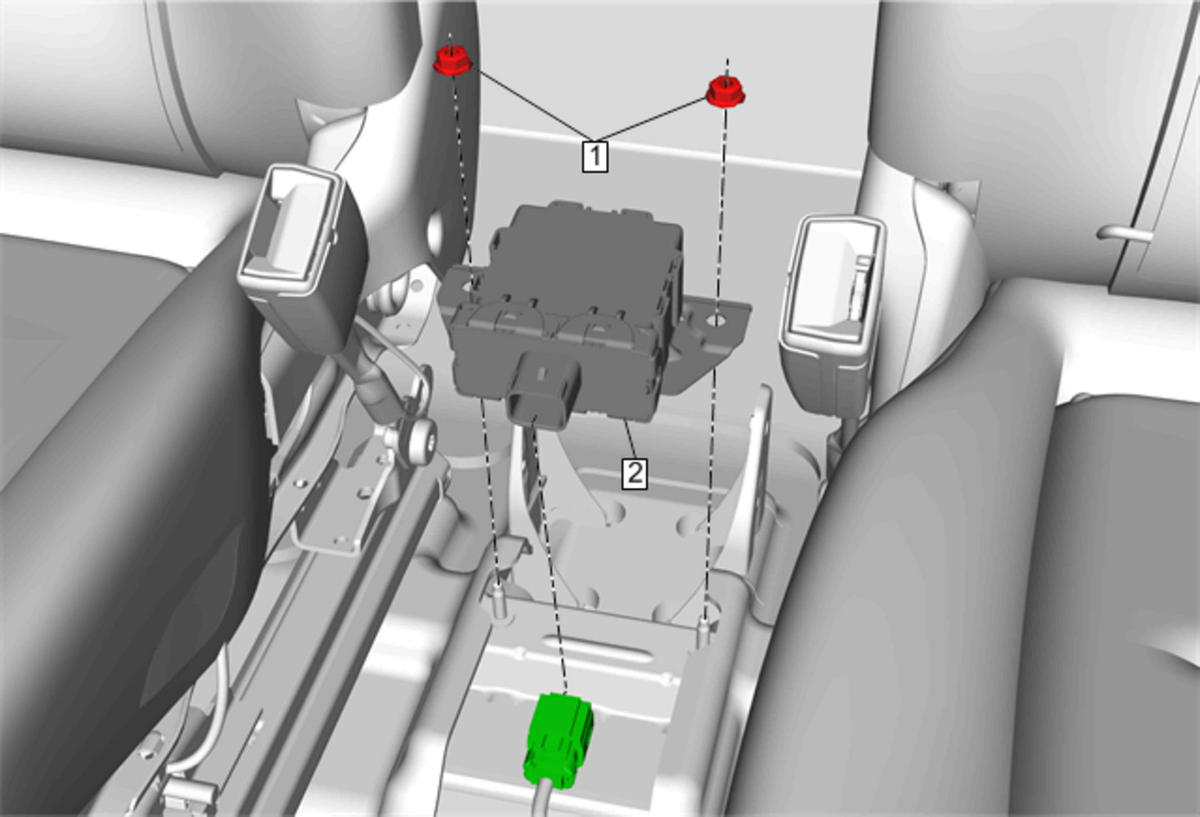

Fig 1: Pedestrian Sound Alert Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Rear Floor Console Replacement
1	Pedestrian Sound Alert Module Bracket Nut (Qty: 2) CAUTION: Fastener Caution Tighten 9 N.m (80 lb in)
2	Pedestrian Sound Alert Module Procedure Disconnect the electrical connector. Perform all necessary programming and setup procedures for the control module: Control Module References

Callout

Component Name

Pedestrian Sound Alert Module Bracket Nut (Qty: 2)

CAUTION:

Tighten
9 N.m (80 lb in)

Pedestrian Sound Alert Module

Procedure

Disconnect the electrical connector.
Perform all necessary programming and setup procedures for the control module: Control Module References
