Steering Wheel Heat Control Module Replacement

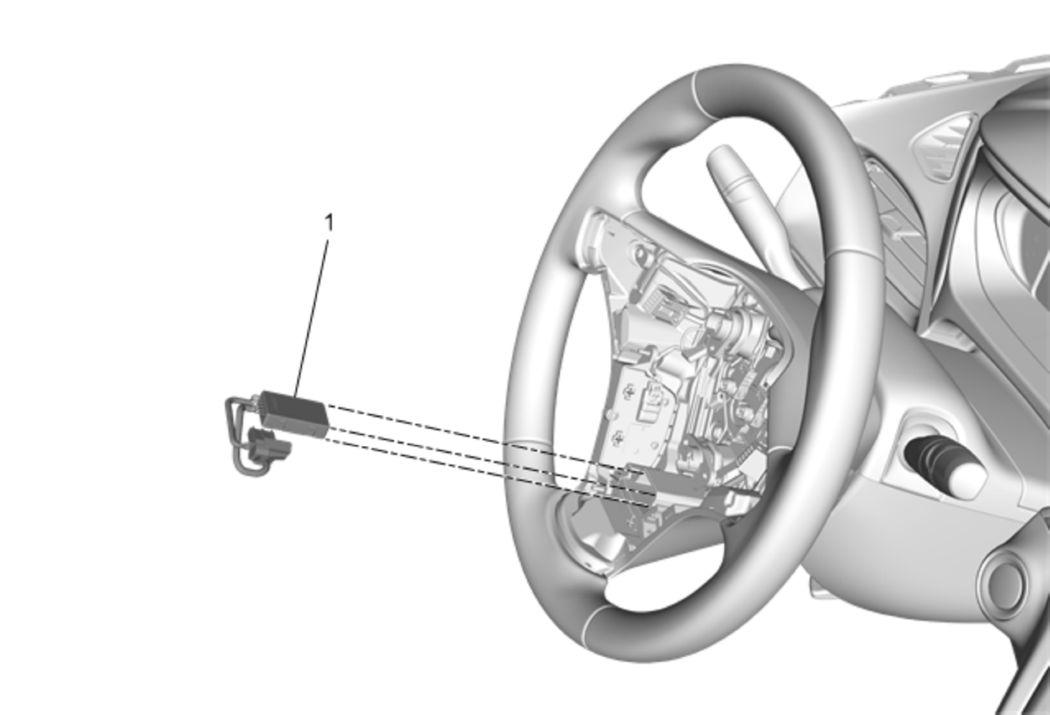

Fig 1: Steering Wheel Heat Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Steering Wheel Spoke Lower Cover Replacement
1	Steering Wheel Heat Control Module Procedure Remove the steering wheel heat control module in order to expose the electrical connectors. Disconnect the electrical connectors. Remove the steering wheel heat control module from the steering wheel.

Callout

Component Name

Steering Wheel Heat Control Module

Procedure

Remove the steering wheel heat control module in order to expose the electrical connectors.
Disconnect the electrical connectors.
Remove the steering wheel heat control module from the steering wheel.
