Brake Pressure Modulator Valve Replacement

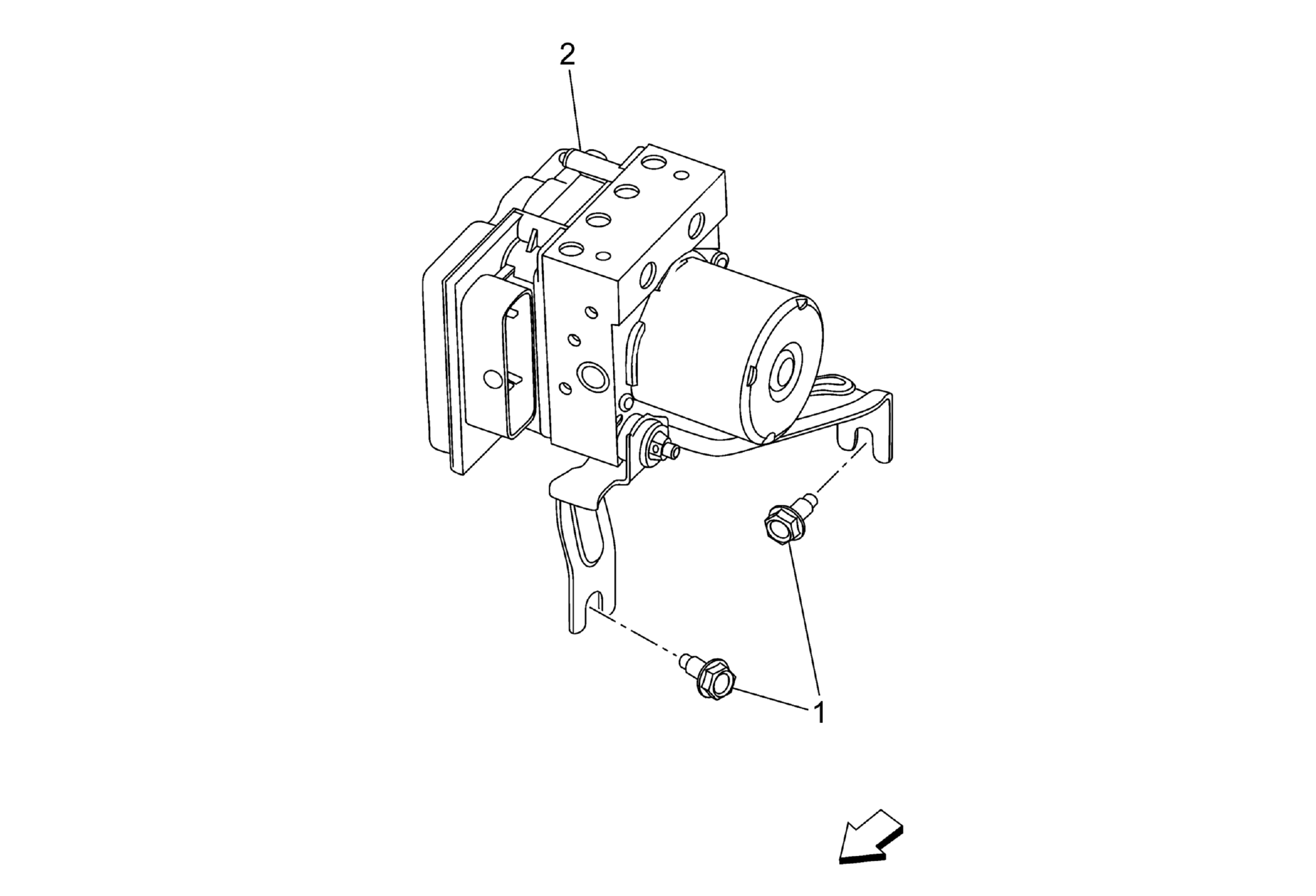

Fig 1: Brake Pressure Modulator Valve With Torque Specifications

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Battery Negative Cable Disconnection and Connection Air Inlet Grille Panel Replacement
1	Brake Pressure Modulator Valve Bracket Bolt [2x] CAUTION: Refer to Fastener Caution . Tighten 25 N.m (18 lb ft)
2	Brake Pressure Modulator Valve Procedure Disconnect the brake pressure modulator valve electrical wiring harness connector. Disconnect the brake lines. Hydraulic Brake System Bleeding Perform all necessary programming and setup procedures for the control module: Control Module References .

Callout

Component Name

Preliminary Procedure

Brake Pressure Modulator Valve Bracket Bolt [2x]

CAUTION:

Tighten
25 N.m (18 lb ft)

Brake Pressure Modulator Valve

Procedure

Disconnect the brake pressure modulator valve electrical wiring harness connector.
Disconnect the brake lines.
Hydraulic Brake System Bleeding
Perform all necessary programming and setup procedures for the control module: Control Module References .
