Accelerator Pedal Position Sensor Replacement

Courtesy of GENERAL MOTORS COMPANY

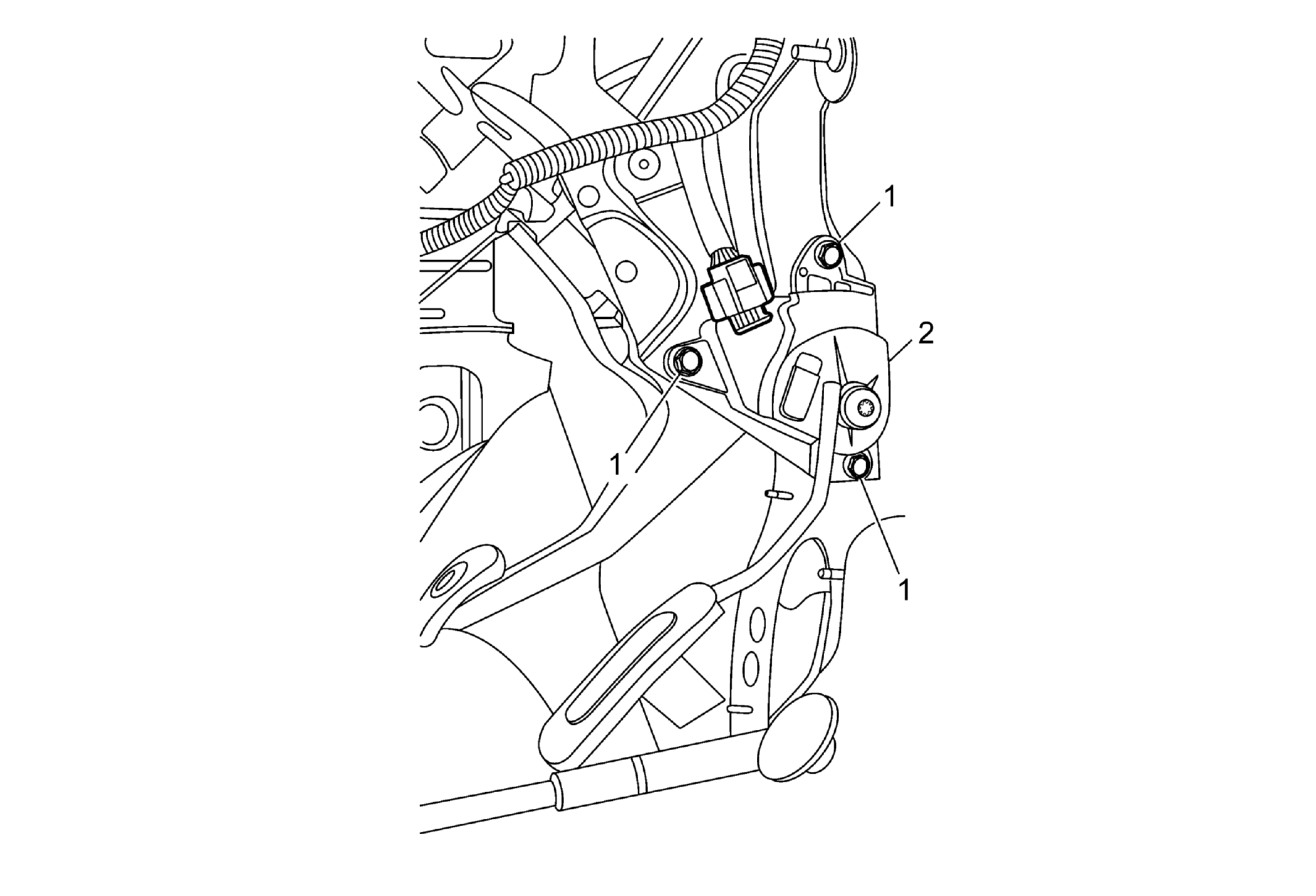

Callout	Component Name
1	Accelerator Pedal Position Sensor Fastener CAUTION: Refer to Fastener Caution . Tighten 5 N.m (44 lb in)
2	Accelerator Pedal Position Sensor Procedure Disconnect the electrical connector. Perform any adjustment, programming or setup procedures that are required when a component or module is removed or replaced. Throttle or Idle Learn

Callout

Component Name

Accelerator Pedal Position Sensor Fastener

CAUTION:

Tighten
5 N.m (44 lb in)

Accelerator Pedal Position Sensor

Procedure

Disconnect the electrical connector.
Perform any adjustment, programming or setup procedures that are required when a component or module is removed or replaced. Throttle or Idle Learn
